USB3 Area scan camera IDS Imaging U3-31L1SE-M/C IDS Imaging U3-31L1SE Rev.1.2
uEye+
USB3 Camera
Sony IMX545 Sensor
4128x3008 Resolution
Area Scan Camera

get a quote for this product

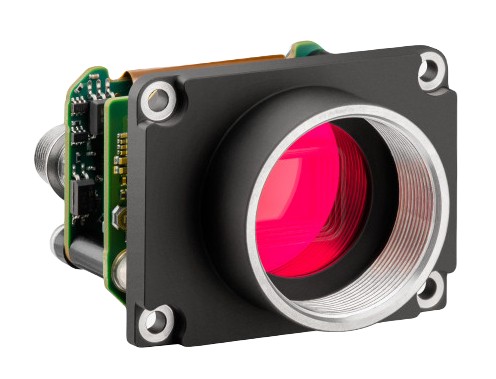

The IDS Imaging uEye+ U3-31L1SE USB3 camera is a board-level camera with a C-mount lens mount that features a 4th generation Sony IMX545 12 megapixel 1/1.1" global shutter sensor with a 31 fps frame rate at full 4128x3008 resolution, and a 2.74 µm pixel size.

uEye+ SE USB 3.1 Gen1 Type C Cameras are available housed with a C-mount lens mount, or as a board-level camera with a C-mount lens mount or without a lens holder, and color or monochrome. Because uEye+ SE USB3 cameras communicate via the USB3 Vision protocol (U3V) and are GenICam compliant, they can be easily integrated into 3rd party compliant software or used with the IDS Peak Software Development Kit (SDK). All IDS cameras are backed by a 3 year warranty.

uEye SE USB 3.1 Gen1 Camera Family Features Features

  • Up to 25 megapixel CMOS sensors
  • USB 3.1 Gen1 w/ Type C connector
  • Suitable for single or multi-camera operation
  • Hirose-8 for GPIO

U3-31L1SE-M/C Camera Features

  • Sony IMX545 1/1.1" global shutter sensor
  • Board-level camera with C-mount lens mount
  • 31 fps at full 12 megapixel (4128x3008) resolution
  • 2.74µm pixel size
    • U3-31L1SE-M-GL (B&W) Datasheet   U3-31L1SE-C-HQ (Color) Datasheet U3-31L1SE-M/C Manual Sensor Spec
    Software All IDS Cameras
    Manufacturer: IDS Model: U3-31L1SE-M/C Total Pixels: 12,417,024
    Resolution: 4128 (h) 3008 (v) Sensor Size: 1/1.1" Color/B & W: Color / Monochrome
    Frame Rate (fps): 31 Sensor Type: CMOS Sensor Device: Sony IMX545
    Pixel Size(µm): 2.74(h) 2.74(v) A/D Bits: 12 Shutter Speed: 0.012 ms - 2000 ms
    Interface: USB3 Voltage(VDC): USB cable Power(watts): 1.7 W - 3.8 W
    Lens Mount: C Shutter Type: Global Weight(grams): 47
    S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 31Lx44Wx34H
