Opto Engineering TCSE Telecentric Lenses
High-resolution telecentric lenses for 4/3", APS-C, APS-H and full frame sensors

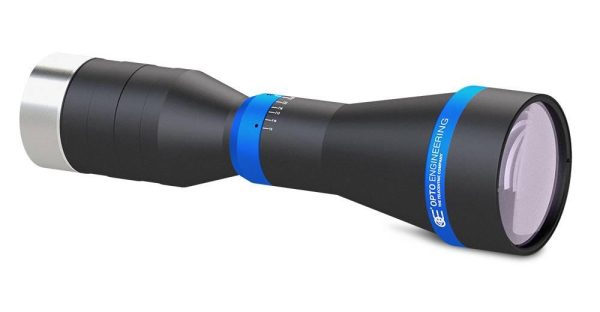

Opto Engineering TCSE telecentric lens Opto Engineering TCSE telecentric lenses are designed for large sensor formats (4/3", APS-C, APS-H ) and full frame sensors. These telecentric lenses provide superb optical performance with high resolution and low distortion. TCSE Series telecentric lenses are available in a variety of optical specifications including lenses that are optimized for use in the near-infrared (NIR) wavelength range.

TCSE telecentric lenses feature the robust design, high-accuracy and high-precision that's required for many machine vision applications including inspection, aerospace, automotive, and medical applications. Long working distances provide additional space for lighting, and industrial tools such as robotic arms.

  • Compact Design
  • Vis/NIR AR Coating
  • High resolving power 150lp/mm, for 3.5µm pixel pitch
  • Large Format 1.1" compatible
  • Detailed test report with certified optical parameters

Opto Engineering telecentric lenses include a wide variety of lenses for area and line scan cameras. Contact us if you would like help choosing the right lens for your industrial machine vision applications.


Product User Guide Back focal adjustment
Get
Quote		   Main optical specifications Object field of view Advanced optical specifications Mechanical specifications Data
sheet
Part
number		 Additional
notes*		 Mag. Image
circle
diameter		 Max
sensor
size		 4/3"
IMX367		 CHR70M CMV50000 Working
distance		 Wavelength
range		 Working
ƒ/N		 Telecentricity
typical
(max)		 Distortion
typical
(max)		 Depth
of
field		 Mount Length Front
diameter
         15.29 x 15.30 31.00 x 21.99 36.43 x 27.62
    (x) (mm)   (mm × mm) (mm × mm) (mm × mm) (mm) (nm)   (deg) (%) (mm)   (mm) (mm)
                1   2 3 4 5 7 9
TCSE5M065-J 0.366 23.9 4/3" 41.78 x 41.80 ø = 60.08 ø = 65.30 189 440-640 8-32 <0.06 (0.08) <0.08 (0.10) 3.1M42x1 FD 12 192 88 TCSE5M065-J datasheet
TCSE10M056-F   0.46 28.4 APS-C 33.24 x 33.26 ø = 47.81 ø = 60.04 160 460-630 11-27 <0.06 (0.08) <0.06 (0.08)2.7F23082 TCSE10M056-F datasheet
TCSE16M048-I 0.8 45.7FF 19.11 x 19.13 38.75 x 27.49 45.54 x 34.52 240460-640 8-32 <0.08 (0.10) <0.10 (0.15)0.7M58x0.75 FD 11.48355100 TCSE16M048-I datasheet
TCSE16M036-I 0.9245.7 FF16.62 x 16.63 33.70 x 23.9039.60 x 30.02 240460-6408-16 <0.08 (0.10)<0.08 (0.10)0.5M58x0.75 FD 11.48351.480 TCSE16M036-I datasheet
TCSE16M028VISNIR-Fa1.537.42.4"10.19 x 10.2020.67 x 14.66ø = 18.41 211450-96016-32 <0.06 (0.08)<0.06 (0.08)0.4F356.160 TCSE16M028VISNIR-F datasheet
TCSE16M024-Fb 1.637.42.4" 9.56 x 9.5619.38 x 13.74 ø = 17.26180 400-70010-32 <0.06 (0.08)<0.06 (0.08)0.2F37061 TCSE16M024-F datasheet
TCSE16M024NIR-F 1.637.42.4" 9.56 x 9.5619.38 x 13.74 ø = 17.26163 760-82510-32 <0.08 (0.10)<0.08 (0.10)0.2F230.261 TCSE16M024NIR-F datasheet
TCSE10M009-Jb2.75 28.2APS-C5.56 x 5.56 ø = 8.00ø = 10.04 178400-70011.5 <0.06 (0.08)<0.06 (0.08) 0.1M42x1 FD 12381.561 TCSE10M009-J datasheet

Notes

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
  4. Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
  5. At the borders of the field depth the image can be still used for measurement but, to get a very sharp image, only half of the nominal field depth should be considered. Pixel size used for calculation is 3.45 µm.
  6. Object side, calculated with the Rayleigh criterion with λ= 520 nm
  7. FD stands for Flange Distance (in mm), defined as the distance from the mounting flange to the camera detector plane.
  8. Indicates the availability of an integrated camera phase adjustment feature.
  9. Measured from the front end of the mechanics to the camera flange.

*Additional Notes

  • This lens works in VIS and IR wavelength range separately, changing working distance between the two configurations
  • This lens works only with a 50 mm cube beamsplitter in front of the objective
