Flickering in videos is a common problem that occurs when the frame rate of the camera does not match the frequency of the light source. The light appears uniform to the human eye, but the camera captures the rapid changes in brightness. This becomes visible in the form of flickering in the live view or in captured videos.

Reason for flickering

The sine wave (current) typically results in a half sine wave for the brightness of lamps, here as an example for 50 Hz.

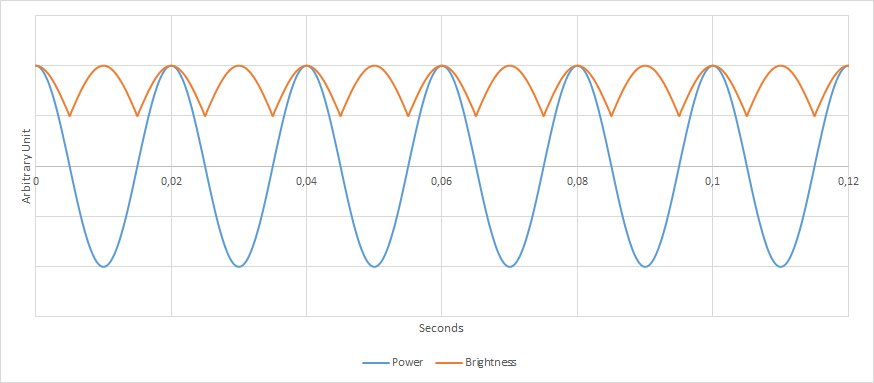

Fig. 34: Lamp brightness with 50 Hz

Fig. 34: Lamp brightness with 50 Hz

So, the image brightness may vary if the frequency of the illumination and the frame rate do not match. Here an example of a capture at 30 fps with an illumination frequency of 50 Hz.

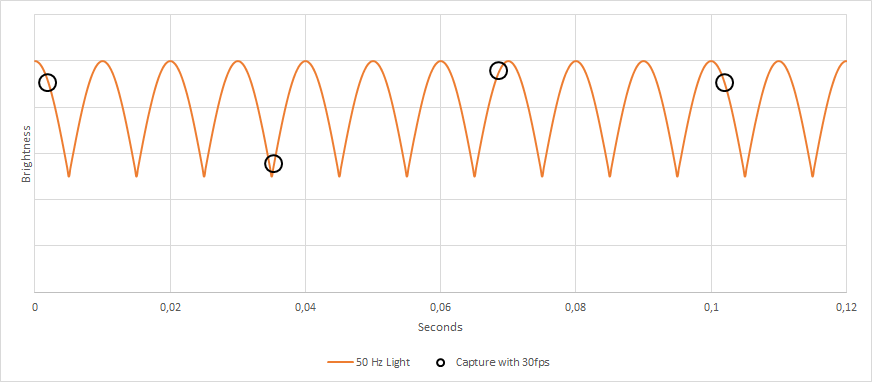

Fig. 35: Lamp brightness (50 Hz) and frame rate (30 fps)

Fig. 35: Lamp brightness (50 Hz) and frame rate (30 fps)

Choosing the right frame rate allows flicker-free image capture, even if the lighting flickers.

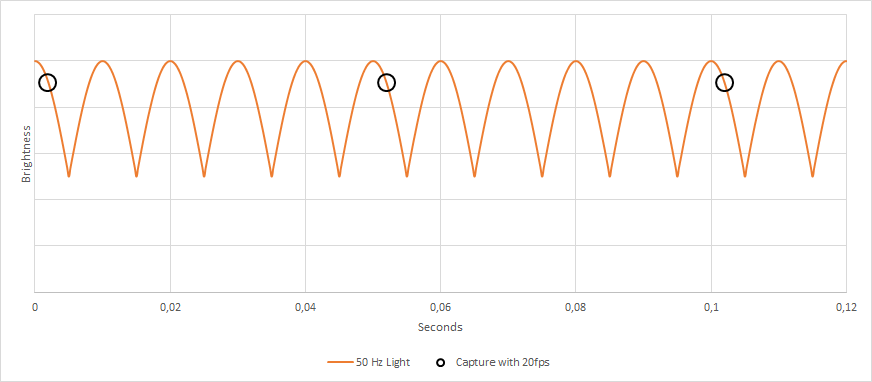

Fig. 36: Lamp brightness (50 Hz) and frame rate (20 fps)

Fig. 36: Lamp brightness (50 Hz) and frame rate (20 fps)

Flicker-free frame rates

Illumination with 50 Hz

Illumination with 60 Hz



120

100





60

50





40

33.333





30

25





24

20

20



17.143

16.667





15

14.286





13.333

12.5





12

11.111





10.909

10

10



9.231

9.091





8.571

8.333





8

7.692





7.5

7.143





7.059

6.667

6.667



6.316

6.250





6

5.882





5.714

5.556





5.455

5.263





5.217

5

5



4.8

4.762





4.615

4.545





4.444

4.348





4.286

4.167





4.138

4

4



3.871

3.846





3.75

3.704





3.636

3.571





3.529

3.448





3.429

3.333

3.333



3.243

3.226





3.158

3.125





3.077

3.03





3

2.941





2.927

2.857

2.857



2.791

2.778





2.727

2.703





2.667

2.632





2.609

2.564





2.553

2.5

2.5



2.449

2.439





2.4

2.381





2.353

2.326





2.308

2.273





2.264

2.222

2.222



2.182

2.174





2.143

2.128





2.105

2.083





2.069

2.041





2.034

2

2

...

...

Frame rates that are flicker-free at both 50 Hz and 60 Hz:
