Displaying the intensity profile

IDS Peak comfortSDK, genericSDK, IPL, and AFL developer manuals are external documents. Please contact us if you need them.

The horizontal intensity profile graphically shows you the color values of a pixel row and the vertical intensity profile shows you the color values of a pixel column.

Click to display the intensity profiles to the right and below the image.

•You can move the displayed pixel row/pixel column with the mouse in the camera window.

•You can display the intensity profile for a continuous acquisition as well as for a single image.

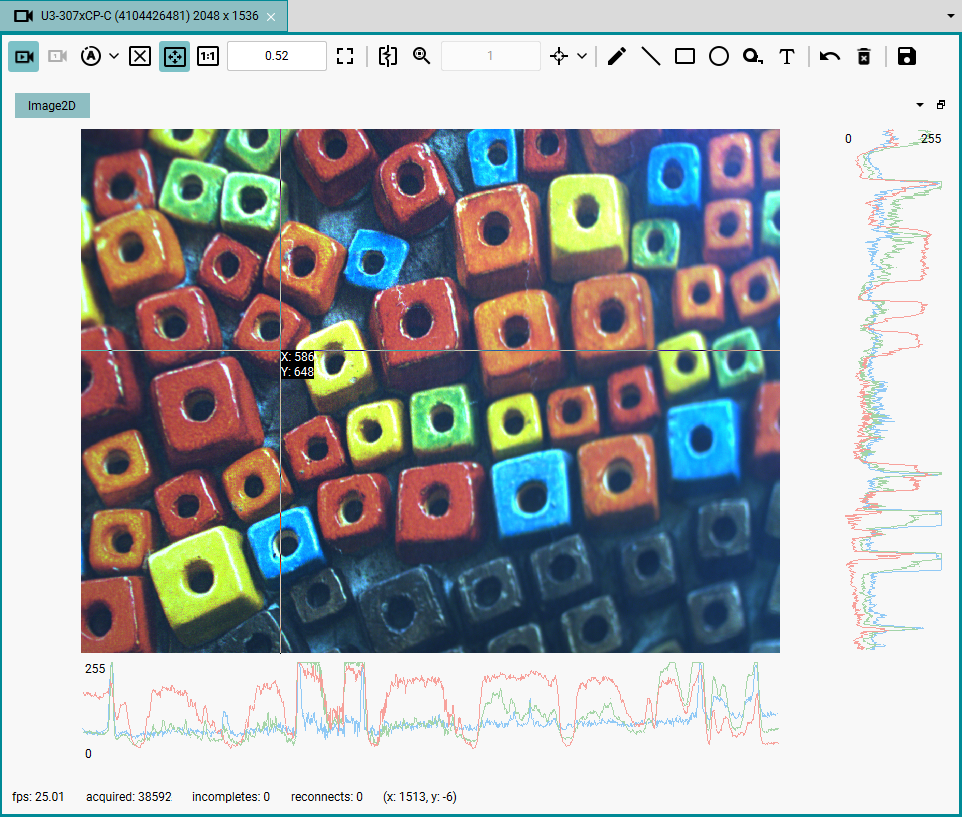

Fig. 220: Displaying the intensity profile
