With white balance you adjust color gains to achieve a neutral white (or neutral grey) in the image.

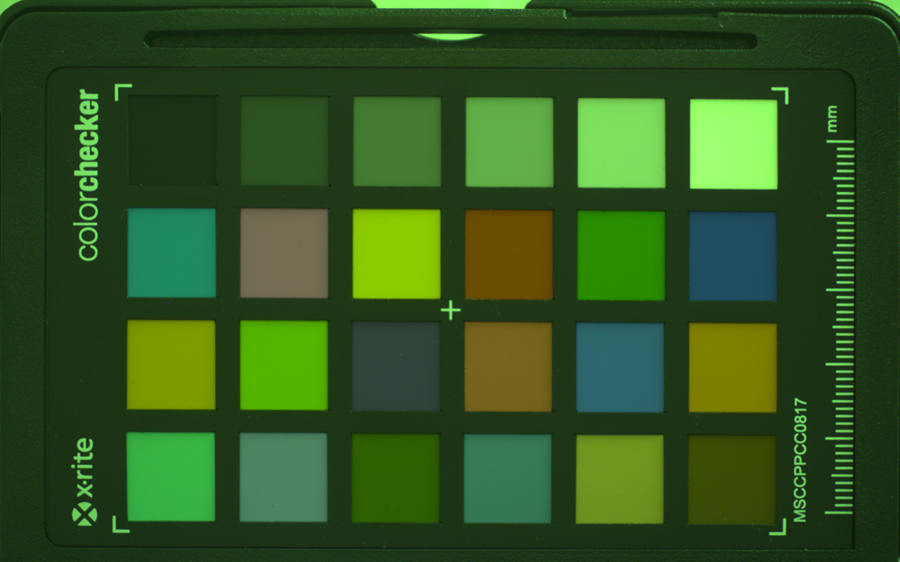

Fig. 100: Color checker target with all color gains set to 1

Fig. 100: Color checker target with all color gains set to 1

Fig. 101: Color checker target after white balance

Fig. 101: Color checker target after white balance

hint_info

Correct white balance depends on the illumination. Changing the light conditions, you should adapt white balance, too.

Configuration

For manual white balance with color gains, you should consider the following aspects:

Choose a target with neutral colors, e.g. a white target. In most cases, a white sheet of paper will do. For demanding applications, use a calibrated target.

Use the same illumination as for your final scene.

Change image brightness to avoid overexposed pixels.

Enable color correction (if possible).

Adjust the color gains until the pixel color values are approximately equal. Keep the predominant color gain (e.g. for green) as low as possible.

GainSelector = DigitalRed;
Gain = 2.0;
GainSelector = DigitalGreen;
Gain = 1.0;
GainSelector = DigitalBlue;
Gain = 1.7;

hint_info

Some camera models support "AnalogRed", "AnalogGreen", "AnalogBlue", or "Red", "Green", "Blue" instead of digital color gains. The process is the same.

hint_info

The line profile tool of the IDS peak Cockpit helps you to judge, if the color values are equal or not.

Fig. 102: Selected pixel row for line profiles

Fig. 102: Selected pixel row for line profiles

Fig. 103: Line profiles before (top) and after white balance (bottom)

Fig. 103: Line profiles before (top) and after white balance (bottom)

Automatic white balance

IDS Vision cameras use the "Grey World" algorithm for automatic white balance.

Using automatic white balance, you should consider the following aspects:

Choose a target with neutral colors or with a colorful, but balanced scene. If necessary choose a suitable sub region for the algorithm (see SubRegions for auto-algorithms).

Use the same illumination as for your final scene.

Avoid overexposed pixels (if possible).

Enable color correction (if possible).

The automatic white balance algorithm can be enabled using BalanceWhiteAuto.

BalanceWhiteAuto = Once;

When choosing "Continuous" instead of "Once", the algorithm will continuously control the color gains to adapt to the current lighting conditions and targets.

hint_info

You can include the color gain settings into your image chunks. This way, you know the exact capture parameters for each image, even if automatic algorithms change them. See Enabling meta data (chunks).

hint_info

Some camera models do not support ExposureAuto and GainAuto. You can use a software algorithm instead, see Automatic image control.
