Mechanical specifications GigE uEye CP

Scroll Previous Top Next More

The mechanical data for each camera model can be found on our website directly at the respective camera model beneath in the "Downloads" tab.

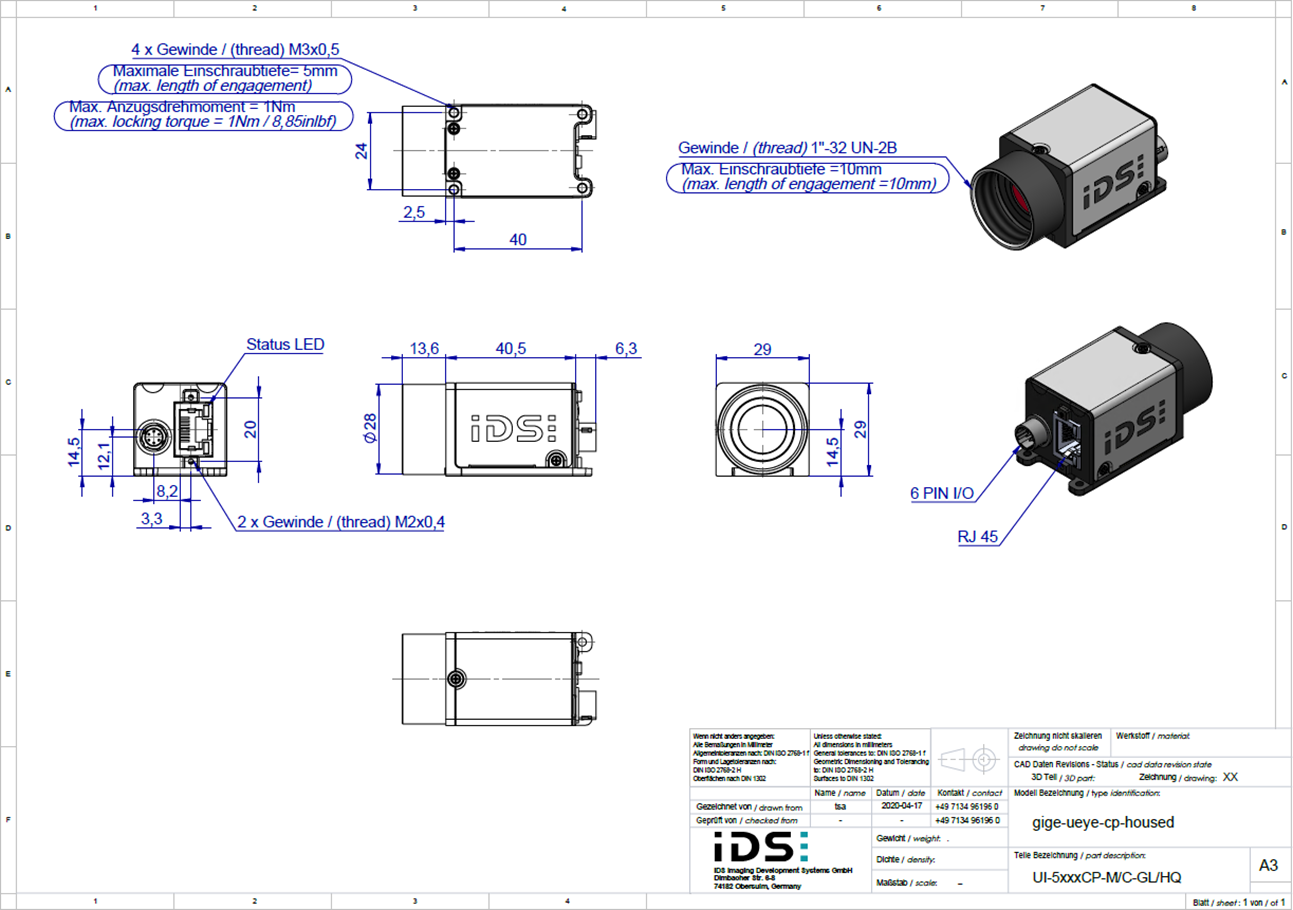

Fig. 572: GigE uEye CP

Fig. 572: GigE uEye CP

hint_notice

NOTICE! The camera connectors may be damaged if you install or remove the camera with plugged in cables. Therefore, first unplug the GigEUSB and/or I/O cable from the camera.

Different dimensions of the models UI-536x/UI-537x

Fig. 573: UI-536x/UI-537x front view

Fig. 573: UI-536x/UI-537x front view

Fig. 574: UI-536x/UI-537x Side view

Fig. 574: UI-536x/UI-537x Side view
