Mechanical specifications USB uEye ML

Scroll Previous Top Next More

hint_info

The following tolerances apply to the drawings in the "Mechanical specifications" chapter:

Length and angles: ISO 2768-f

Shape and position: ISO 2768-H

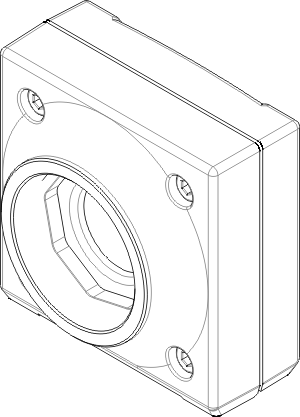

Fig. 494: USB uEye ML (from top)

Fig. 494: USB uEye ML (from top)

Fig. 495: USB uEye ML (from bottom)

Fig. 495: USB uEye ML (from bottom)

Lens mount

Enclosure IP code

Weight

CS-Mount

IP 30

37 g

hint_notice

NOTICE! The camera connectors may be damaged if you install or remove the camera with plugged in cables. Therefore, first unplug the GigEUSB and/or I/O cable from the camera.

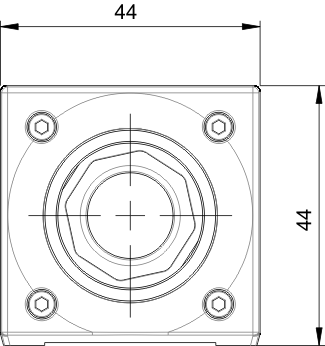

Fig. 496: USB uEye ML - front view

Fig. 496: USB uEye ML - front view

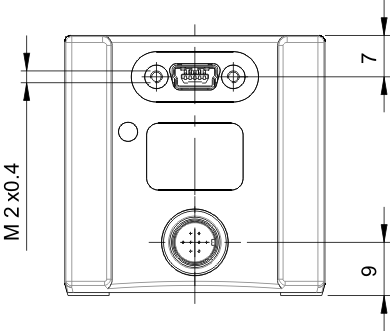

Fig. 497: USB uEye ML - back view

Fig. 497: USB uEye ML - back view

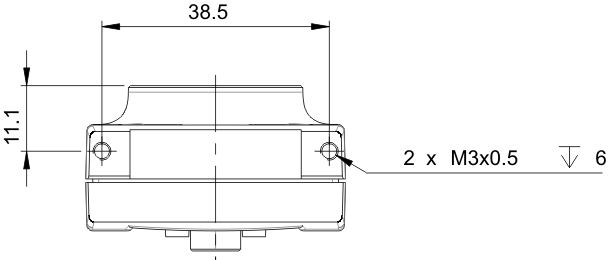

Fig. 498: USB uEye ML - bottom view

Fig. 498: USB uEye ML - bottom view

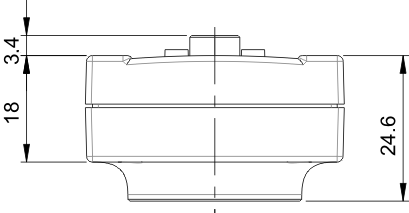

Fig. 499: USB uEye ML - top view

Fig. 499: USB uEye ML - top view

Fig. 500: USB uEye ML - side view

Fig. 500: USB uEye ML - side view
