IDS Software Suite 4.96.1

Digital output specifications



Max.



Output current (short-time)

500

mA

Output current (permanent)

150

mA

Output voltage

30

V

Breakdown voltage

50

V

Collector power dissipation

125

mW

The digital output is galvanically isolated using an optocoupler to protect the camera and the PC against surges. Only DC voltages may be applied to the digital output.

The output of the optocoupler can be used as an open collector or open emitter output. This means that the output signal can be connected to ground or to the supply voltage. The output signal is active if the collector-emitter switch is closed (software setting "Flash high active").

Digital output wiring

The following figures show examples of how the digital output is wired.

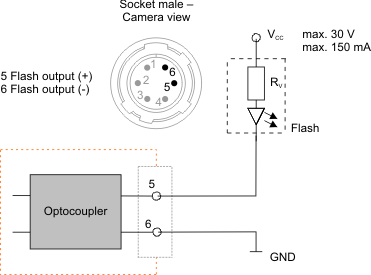

Fig. 581: GigE uEye CP - Wiring of the digital output as an open collector output

Fig. 581: GigE uEye CP - Wiring of the digital output as an open collector output

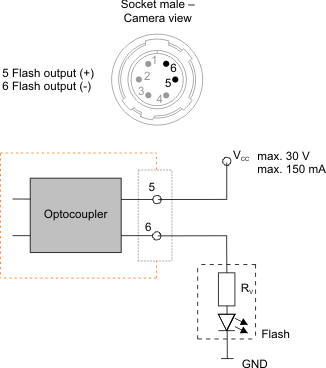

Fig. 582: GigE uEye CP - Wiring of the digital output as an open emitter output

Fig. 582: GigE uEye CP - Wiring of the digital output as an open emitter output
