Trigger input wiring GigE uEye FA

Digital input specifications

	Symbol	Min.	Typ.	Max.	Unit
Input high range	VIH	5	-	24	V
Input low range	VIL	0	0	1	V
Input leakage current	II	-	-	-	µA
Trigger pulse width (edge)		10	-	-	µs
Trigger edge steepness		35	-	-	V/ms

For interpreting the trigger signal, either the rising or the falling edge can be used. The digital input is galvanically isolated using an optocoupler to protect the camera and the PC against surges. Only DC voltages may be applied to the digital input.

Digital input wiring

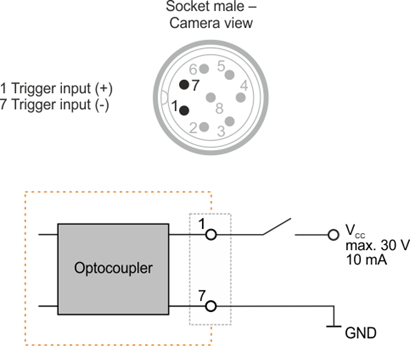

Fig. 591: GigE uEye FA - Wiring of the trigger connector
