IDS Software Suite 4.96.1

Select the menu View > Zoom window to open the "Zoom" window. This window shows an enlarged view of the image area at the selected cursor position.

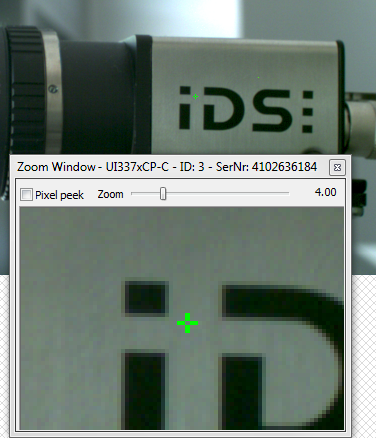

Fig. 115: View menu – Zoom window

If you enable the "Pixel Peek" check box at the top of the zoom window, the color values at the cursor position are displayed (see Pixel peek window). Using the slider at the top of the window, you can set the zoom factor in the range between 0.25 and 20.00. The size of the image area depends on the selected size of the zoom window.

To set the cursor position you want to display in the window, place the cursor at that position in the image, hold the CTRL key and right-click. Alternatively, you can set the image position using the context menu.
