Syntax

INT is_FreezeVideo (HIDS hCam, INT Wait)

Description

is_FreezeVideo() acquires a single image from the camera. In DIB mode, the image is stored in the active image memory. If ring buffering is used in DIB mode, the captured image is transferred to the next available image memory of the sequence. Once the last available sequence memory has been filled, the sequence event or message will be triggered.

hint_info

Note: The is_freezeVideo() function is not recommended for multiple or continuous capturing. Use the is_CaptureVideo() function instead.

In Direct3D or OpenGL mode, the image is directly copied to the graphics card buffer and then displayed.

Image capture will be started by a trigger if you previously enabled the trigger mode using is_SetExternalTrigger(). A hardware triggered image acquisition can be cancelled using is_StopLiveVideo() if exposure has not started yet. If you call is_FreezeVideo() with the IS_WAIT parameter, you have to simulate a trigger signal using is_ForceTrigger() to cancel the acquisition.

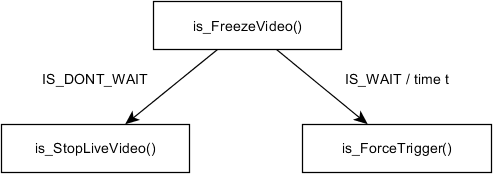

Fig. 200: is_FreezeVideo() - Cancelling acquisition

Fig. 200: is_FreezeVideo() - Cancelling acquisition

For further information on the image capture modes of the uEye camera, see the How to proceed: Image capture section.

Input parameters

hCam

Camera handle

Return values

3 = IS_CAPTURE_STATUS

An error occurred during the data transfer, see is_CaptureStatus().

The parameter IS_CAPTURE_STATUS replaces the previous parameter IS_TRANSFER_FAILED.

The parameter IS_TRANSFER_FAILED was moved into the new header file ueye_deprecated.h, which contains all obsolete function definitions and constants. If necessary the header file ueye_deprecated.h can be included in addition to the header file ueye.h.

IS_BAD_STRUCTURE_SIZE

An internal structure has an incorrect size.

IS_CANT_COMMUNICATE_WITH_DRIVER

Communication with the driver failed because no driver has been loaded.

IS_CAPTURE_RUNNING

A capturing operation is in progress and must be terminated first.

IS_INVALID_BUFFER_SIZE

The image memory has an inappropriate size to store the image in the desired format.

IS_INVALID_CAMERA_TYPE

The camera type defined in the .ini file does not match the current camera model.

IS_INVALID_EXPOSURE_TIME

This setting is not available for the currently set exposure time.

IS_INVALID_CAMERA_HANDLE

Invalid camera handle

IS_INVALID_MEMORY_POINTER

Invalid pointer or invalid memory ID

IS_INVALID_PARAMETER

One of the submitted parameters is outside the valid range or is not supported for this sensor or is not available in this mode.

IS_IO_REQUEST_FAILED

An IO request from the uEye driver failed. Possibly the versions of the ueye_api.dll (API) and the driver file (ueye_usb.sys or ueye_eth.sys) do not match.

IS_NO_ACTIVE_IMG_MEM

No active image memory available. You must set the memory to active using the is_SetImageMem() function or create a sequence using the is_AddToSequence() function.

IS_NO_USB20

The camera is connected to a port which does not support the USB 2.0 high-speed standard.

IS_NO_SUCCESS

General error message

IS_NOT_CALIBRATED

The camera does not contain any calibration data.

IS_NOT_SUPPORTED

The camera model used here does not support this function or setting.

IS_OUT_OF_MEMORY

No memory could be allocated.

IS_TIMED_OUT

A timeout occurred. An image capturing process could not be terminated within the allowable period.

IS_SUCCESS

Function executed successfully

IS_TRANSFER_ERROR

Transfer error. Frequent transfer errors can mostly be avoided by reducing the pixel rate.

Related functions

is_HasVideoStarted()

is_IsVideoFinish()

is_SetExternalTrigger()

is_ForceTrigger()

is_CaptureVideo()

is_SetTimeout()

is_CaptureStatus()

Example

Enable trigger mode, set high-active flash mode and capture an image:

is_SetExternalTrigger(hCam, IS_SET_TRIGGER_SOFTWARE);

// Set the flash to a high active pulse for each image in the trigger mode
UINT nMode = IO_FLASH_MODE_TRIGGER_HI_ACTIVE;
is_IO(m_hCam, IS_IO_CMD_FLASH_SET_MODE, (void*)&nMode, sizeof(nMode));

is_FreezeVideo(hCam, IS_WAIT);

Sample programs

SimpleAcquire (C++)

uEyeC# Demo (C#)
