Automation Technology Solution Package

Automation Technology GmbH, or AT for short, is a leading manufacturer of 3D laser profilers, and also infrared smart cameras. As customary among leading camera suppliers, AT provides a comprehensive software development kit (SDK), making it easy for customers to deploy AT cameras. AT’s Solution Package is available for both Windows and Linux. Read on to find out what’s included!

Let’s unpack each of the capabilities highlighted in the above graphic. You can get the overview by video, and/or by our written highlights.

Video overview

Courtesy Automation Technology GmbH

Overview

AT’s Solution Package is designed to make it easy to configure the camera(s), prototype initial setups and trial runs, proceed with a comprehensive integration, and achieve a sustainable solution.

cxExplorer

Configuration of a compact sensor can be easily done with the cxExplorer, a graphical user interface provided by AT – Automation Technology. With the help of the cxExplorer a sensor can be simply adjusted to the required settings, using easy to navigate menus, stepwise “wizards”, image previews, etc.

APIs, Apps, and Tools

The cxSDK tool offers programming interfaces for C, C++, and Python. The same package work with all of Automation Technologies 3D and infrared cameras.

Product documentation

Of course there’s documentation. Everybody provides documentation. But not all documentation is both comprehensive and user-friendly. This is. It’s illustrated with screenshots, examples, and tutorials.

Metrology Package

Winner of a 2023 “inspect” award, the optional add-on Metrology Package can commission a customer’s new sensor in just 10 minutes, with no programming required. Then go on to create an initial 3D point cloud, also with little user effort required.

Screenshot of Metrology Explorer – courtesy Automation Technology GmbH

For more information about Automation Technology 3D laser profilers, infrared smart cameras, or the Solution Package SDK, call us at 978-474-0044. Tell us a little about your application, and we can guide you to the optimal products for your particular needs.

1st Vision’s sales engineers have over 100 years of combined experience to assist in your camera and components selection. With a large portfolio of lenses, cables, NIC cards and industrial computers, we can provide a full vision solution!

January 24, 2024March 8, 2024

TCSE series hi-res telecentric lenses

Opto Engineering is known and respected for high-performance lenses in machine vision, medical, and related fields. The new TCSE series are telecentric lenses designed for large sensor formats (4/3″, APS-C, APS-H). Each provides high resolution with low distortion.

Who needs a telecentric lens?

Before inviting you to some of the TCSE series features, let’s offer readers who aren’t already telecentric-savvy a brief motivation for this category of lens. If you are doing precise gauging applications – measuring via optics and software – your tolerances may require a telecentric lens. A telecentric lens eliminates perspective error. They have very low distortion. And, if paired with collimated light, they enhance edge definition.

For a comprehensive read, check out our blog Advantages of Telecentric Lenses in Machine Vision Applications. Not sure if you need a telecentric lens? Call us at 978-474-0044 – tell us a little about your application and we can guide you through any or all of lens, camera, lighting and other choices.

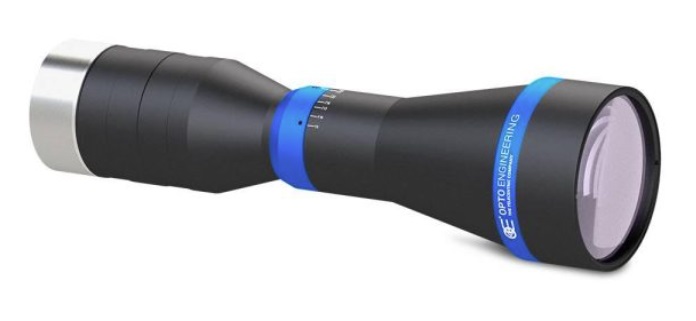

TCSE5EM065-J – Courtesy Opto Engineering

TCSE lenses are available for applications using light in either the visible spectrum or near-infrared (NIR) wavelengths. Currently there are 8 members in the TCSE product family.

Image circle diameter

The TCSE Series offers image circle diameter options from 24 – 45mm.

Magnification

A key parameter in telecentric imaging is the level of magnification available. The 8 members of the TCSE Series offer magnification ranging from 0.36 through 2.75 times the original object size.

Working distance

The working distance (WD), from the front of the lens to the object being imaged, varies by lens model across the TCSE Series. The shortest WD offered is 160mm, spanning distances up to 240mm. These long working distances allow space for lighting and/or robotic arms.

Worth noting

While typically “plug and play” once mounted on your camera, it’s worth noting that the TCSE lenses offer back focal length adjustment, should one choose to fine tune.

Summary

Telecentric lenses are the core business for Opto Engineering, who have more than 20 years expertise in research, development, and production. 1stVision, North America’s largest stocking distributor, works to understand each customer’s application requirements, to help you select the ideal lens, camera, or other imaging component(s). Call us at 978-474-0044.

December 15, 2021December 15, 2021

Three new AVT Alvium 1800 USB3 cameras

AVT Alvium housed, board-level, and open options

1stVision is pleased to announce that Allied Vision has released three fourth-generation Sony IMX sensors with Pregius S global shutter technology to its Alvium 1800 U camera series. With the new models Alvium 1800 U-511 (Sony IMX547), Alvium 1800 U-811 (Sony IMX546) and Alvium 1800 U-1242 (Sony IMX545), the Alvium camera series with USB3 interface now comprises 19 models. All cameras are available in different housing variants (closed housing, open housing, bareboard), as monochrome or color cameras, and with different lens mount options. The USB port can be located either on the back of the camera or on the left side (as seen from the sensor).

AVT Alvium 1800 U housing option — AVT Alvium housed, bareboard, and open variants

To highlight just one key point about each new camera:

Alvium U-511: First 5.1 Mpix global shutter Sony sensor for S-mount lens
Alvium U-811: Square 8 Mpix sensor ideal for round or square objects, and microscopy
Alvium U-1242: Same resolution with smaller sensor as 2^nd gen IMX304

Model	Alvium 1800 U-511	Alvium 1800 U-811	Alvium 1800 U-1242
Sensor	Sony IMX547	Sony IMX546	Sony IMX545
Sensor type	CMOS Global shutter	CMOS Global shutter	CMOS Global shutter
Sensor size	Type 1/1.8	Type 2/3	Type 1/1.1
Pixel size	2.74 μm × 2.74 μm	2.74 μm × 2.74 μm	2.74 μm × 2.74 μm
Resolution	5.1 MP 2464 × 2064	8.1 MP 2848 × 2848	12.4 MP 4128 × 3008
Frame rate	78 fps (@450MB/s)	51 fps(@450MB/s)	33 fps(@450MB/s)

Key attributes at a glance

All cameras are available with different housing variants (closed housing, open housing, bareboard) as well as different lens mount options, according to your application’s requirements.

Contact us at 1stVision with a brief idea of your application, and we will contact you to discuss camera options. support and / or pricing.

1st Vision’s sales engineers have an average of 20 years experience to assist in your camera selection. Representing the largest portfolio of industry leading brands in imaging components, we can help you design the optimal vision solution for your application.

About Us | 1stVision

1st Vision is the most experienced distributor in the U.S. of machine vision cameras, lenses, frame grabbers, cables, lighting, and software in the industry.

December 15, 2021December 15, 2021

New IDS uEye XLE camera family

The IDS uEye XLE family is now available to 1stVision customers. These versatile cameras are designed for high-volume price-sensitive projects needing basic functions without special features. Suitable applications include but are not limited to manufacturing, metrology, traffic, and agriculture.

IDS Imaging XLE camera — IDS uEye XLE board-level and housed options

Thanks to different housing variants, extremely compact dimensions and modern USB3 Vision interface, uEye XLE cameras can be easily integrated into any image processing system. Housing variants include housed and board-level, with different lens mount options.

Currently there are 10 family members, each available with monochrome or color CMOS sensors, from 2 – 5MPixel. Cameras have excellent low-light performance, thanks to BSI “Back Side Illumination” pixel technology.

With a USB 3.1 Gen 1 interface, all XLE models communicate via the USB3 Vision protocol, and are 100 percent GenICam-compliant. So you may easily operate and program the cameras with the IDS peak SDK, as well as other industry-standard software.
