Color pixel formats hold red, green and blue information for each pixel, typically derived through debayering a RAW image. This means, that each pixel needs (at least) three times the bit depth as the RAW format with the same bit depth.

Debayered pixel formats are required for image processing or image display. The names of these pixel formats start either with "RGB" or with "BGR", indicating the order of the color values, followed by an "a" for alpha channel holding the opacity of the pixel (optional), the bit depth ("8", "10", "12") and the optional packed indicator ("p").

The pixels are read out channel-wise, then row-wise left to right, then top to bottom.

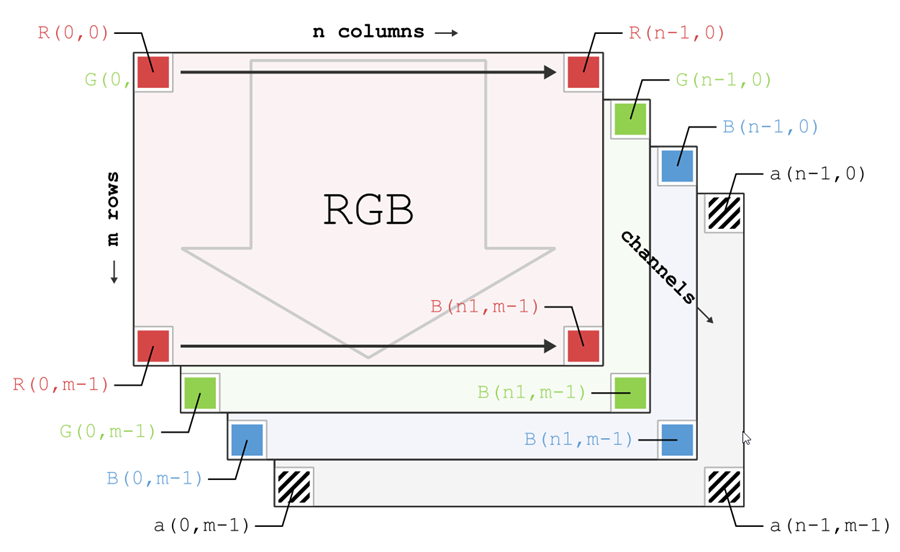

Fig. 32: Indexing of color Pixelformats at the example of RGBa

Fig. 32: Indexing of color Pixelformats at the example of RGBa

Data representation of debayered pixel formats

RGB8, BGR8, RGBa8, BGRa8
Color pixel formats with a bit depth of 8 bit are byte aligned. Each color value ("R", "G", "B", "a") of the pixel fills exactly one byte. With RGB8 and BGR8 a pixel needs 3 byte = 24 bit in total. Adding an alpha channel for RGBa8 and BGRa8, the pixel's size increases to 4 byte = 32 bit.
The second pixel row starts in byte 3n or 4n respectively.

RGB10, BGR10, RGB12, BGR12, RGBa10, BGRa10, RGBa12, BGRa12
Color pixel formats with a bit depth of 10 or 12 bit need two bytes for each color value ("R", "G", "B", "a"), leaving 6 or 4 bits of every second byte unused. With RGB10, BGR10, RGB12 or BGR12 a pixel needs 6 byte = 48 bit in total. Adding an alpha channel, the size of RGBa10, BGRa10, RGBa12 and BGRa12 the pixel's size increases to 8 byte = 64 bit.
The second pixel row starts with byte 6n or 8n respectively.

RGB10p32, BGR10p32
With the packed 10 bit formats RGB10p32 and BGR10p32, the unused bits are reduced to only 2 out of 32 total bits. This means the data is much denser packed but the alignment gets lost. RGB10p32 and BGR10p32 need 4 byte = 32 bits for each pixel.
The second pixel row starts with byte 4n.

Fig. 33: Data representation of color pixel formats at the example of RGB/RGBa channels

Fig. 33: Data representation of color pixel formats at the example of RGB/RGBa channels

Pixel format

Type

Channels

Bit depth

Unused Bits*

Packed

Grouped

Data size per pixel

2nd row starting with byte

RGB8

Color

RGB icon-channel-rgb

8

-

-

-

3 byte = 24 bit

3n

RGB10

Color

RGB icon-channel-rgb

10

18 of 48

n

-

6 byte = 48 bit

6n

RGB12

Color

RGB icon-channel-rgb

12

12 of 48

n

-

6 byte = 48 bit

6n

RGB10p32

Color

RGB icon-channel-rgb

10

4 of 32

y

n

4 byte = 32 bit

4n

BGR8

Color

BGR icon-channel-bgr

8

-

-

-

3 byte = 24 bit

3n

BGR10

Color

BGR icon-channel-bgr

10

18 of 48

n

-

6 byte = 48 bit

6n

BGR12

Color

BGR icon-channel-bgr

12

12 of 48

n

-

6 byte = 48 bit

6n

BGR10p32

Color

BGR icon-channel-bgr

10

4 of 32

y

n

4 byte = 32 bit

4n

RGBa8

Color

RGB + Alpha icon-channel-rgba

8

-

-

-

4 byte = 32 bit

4n

RGBa10

Color

RGB + Alpha icon-channel-rgba

10

24 of 64

n

-

8 byte = 64 bit

8n

RGBa12

Color

RGB + Alpha icon-channel-rgba

12

16 of 64

n

-

8 byte = 64 bit

8n

BGRa8

Color

BGR + Alpha icon-channel-bgra

8

-

n

-

4 byte = 32 bit

4n

BGRa10

Color

BGR + Alpha icon-channel-bgra

10

24 of 64

n

-

8 byte = 64 bit

8n

BGRa12

Color

BGR + Alpha icon-channel-bgra

12

16 of 64

n

-

8 byte = 64 bit

8n

* Alpha channel bits are not considered as "unused".
