The names of RAW Bayer pixel formats start with the Color filter (Bayer filter) (e.g. BayerRG), followed by the bit depth ("8", "10", "12") and the optional packed indicator ("p").

The pixels are read out row-wise left to right, then top to bottom.

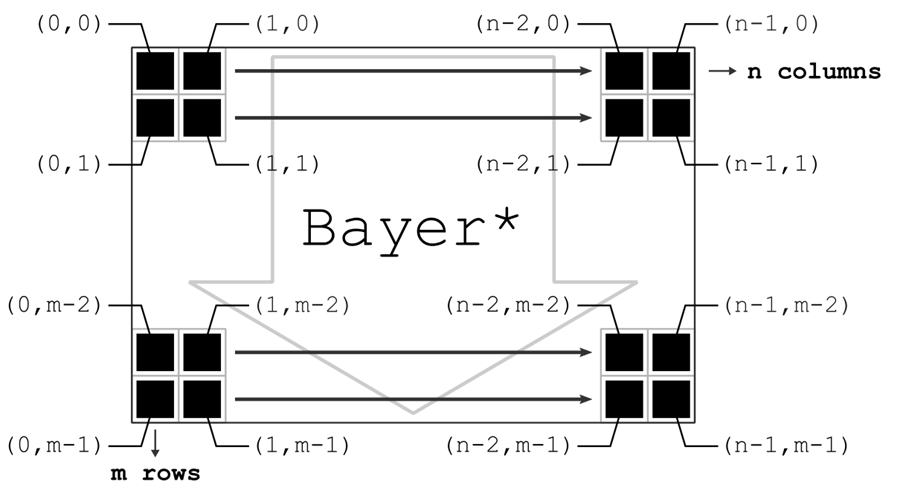

Fig. 29: Indexing of a RAW Bayer image with n columns and m rows, readout sequence row-wise left to right, then top to bottom

Fig. 29: Indexing of a RAW Bayer image with n columns and m rows, readout sequence row-wise left to right, then top to bottom

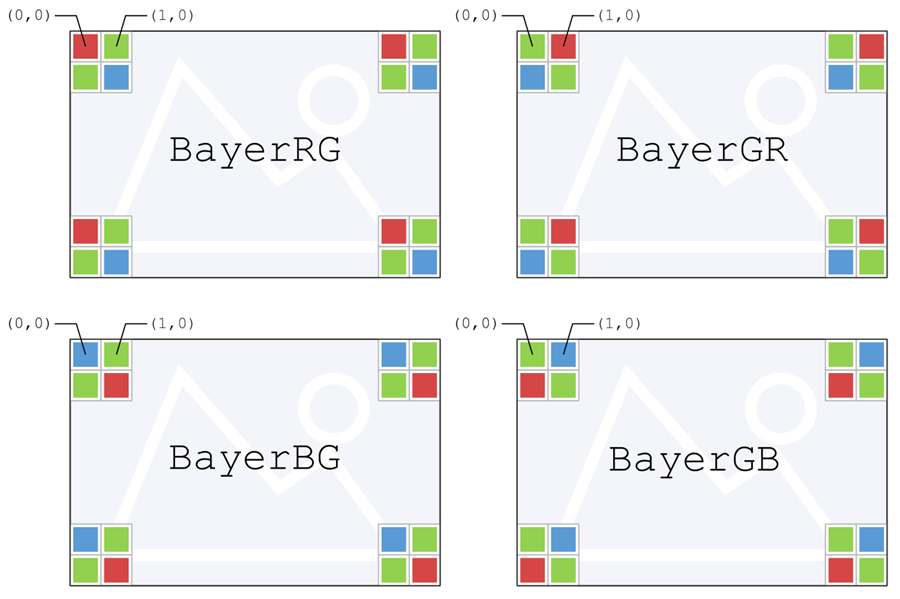

Fig. 30: Differences between BayerRG, BayerGR, BayerBG, and BayerGB

Fig. 30: Differences between BayerRG, BayerGR, BayerBG, and BayerGB

Data representation of RAW Bayer pixel formats

BayerRG8, BayerGR8, BayerBG8, BayerGB8
RAW Bayer pixel formats with a bit depth of 8 bit are byte aligned. Each pixel fills exactly one byte. The second pixel row starts in byte n.

BayerRG10, BayerGR10, BayerBG10, BayerGB10, BayerRG12, BayerGR12, BayerBG12, BayerGB12
RAW Bayer unpacked pixel formats with bit depth of 10 or 12 bit need two bytes for each pixel, where 6 or 4 bits of every second byte are unused. The second pixel row starts in byte 2n.

BayerRG10p, BayerGR10p, BayerBG10p, BayerGB10p, BayerRG12p, BayerGR12p, BayerBG12p, BayerGB12p
With the packed formats, there are no such empty bits. Each pixel starts directly after the other. This means that the alignment gets lost, but data is much denser packed. For example, a "BayerRG10p" packed image needs only 1.25 bytes per pixel, whereas a "BayerRG10" unpacked image needs 2 bytes per pixel. A "BayerRG12p" packed images needs 1.5 bytes per pixel, compared to 2 bytes per pixel for a "BayerRG12" unpacked image.

Fig. 31: Data representation of Bayer RAW PixelFormats at the example of a BayerRG pattern

Fig. 31: Data representation of Bayer RAW PixelFormats at the example of a BayerRG pattern

Pixel format

Type

Pixel color filter

Bit depth

Unused bits

Packed

Grouped

Data size per pixel

2nd row starting with byte

BayerRG8

RAW Bayer

BayerRG icon-bayer-rg

8

-

-

-

1 byte = 8 bit

n

BayerRG10

RAW Bayer

BayerRG icon-bayer-rg

10

6 of 16

n

n

2 byte = 16 bit

2n

BayerRG12

RAW Bayer

BayerRG icon-bayer-rg

12

4 of 16

n

n

2 byte = 16 bit

2n

BayerRG10p

RAW Bayer

BayerRG icon-bayer-rg

10

-

y

n

1.25 byte = 10 bit

5n/4

BayerRG12p

RAW Bayer

BayerRG icon-bayer-rg

12

-

y

n

1.5 byte = 12 bit

3n/2

BayerRG10g40*

RAW Bayer

BayerRG icon-bayer-rg

10

-

y

y

1.25 byte = 10 bit

5n/4

BayerRG12g24*

RAW Bayer

BayerRG icon-bayer-rg

12

-

y

y

1.5 byte = 12 bit

3n/2

BayerGR8

RAW Bayer

BayerGR icon-bayer-gr

8

-

-

-

1 byte = 8 bit

n

BayerGR10

RAW Bayer

BayerGR icon-bayer-gr

10

6 of 16

n

n

2 byte = 16 bit

2n

BayerGR12

RAW Bayer

BayerGR icon-bayer-gr

12

4 of 16

n

n

2 byte = 16 bit

2n

BayerGR10p

RAW Bayer

BayerGR icon-bayer-gr

10

-

y

n

1.25 byte = 10 bit

5n/4

BayerGR12p

RAW Bayer

BayerGR icon-bayer-gr

12

-

y

n

1.5 byte = 12 bit

3n/2

BayerGR10g40*

RAW Bayer

BayerGR icon-bayer-gr

10

-

y

y

1.25 byte = 10 bit

5n/4

BayerGR12g24*

RAW Bayer

BayerGR icon-bayer-gr

12

-

y

y

1.5 byte = 12 bit

3n/2

BayerBG8

RAW Bayer

BayerBG icon-bayer-bg

8

-

-

-

1 byte = 8 bit

n

BayerBG10

RAW Bayer

BayerBG icon-bayer-bg

10

6 of 16

n

n

2 byte = 16 bit

2n

BayerBG12

RAW Bayer

BayerBG icon-bayer-bg

12

4 of 16

n

n

2 byte = 16 bit

2n

BayerBG10p

RAW Bayer

BayerBG icon-bayer-bg

10

-

y

n

1.25 byte = 10 bit

5n/4

BayerBG12p

RAW Bayer

BayerBG icon-bayer-bg

12

-

y

n

1.5 byte = 12 bit

3n/2

BayerBG10g40*

RAW Bayer

BayerBG icon-bayer-bg

10

-

y

y

1.25 byte = 10 bit

5n/4

BayerBG12g24*

RAW Bayer

BayerBG icon-bayer-bg

12

-

y

y

1.5 byte = 12 bit

3n/2

BayerGB8

RAW Bayer

BayerGB icon-bayer-gb

8

-

-

-

1 byte = 8 bit

n

BayerGB10

RAW Bayer

BayerGB icon-bayer-gb

10

6 of 16

n

n

2 byte = 16 bit

2n

BayerGB12

RAW Bayer

BayerGB icon-bayer-gb

12

4 of 16

y

n

2 byte = 16 bit

2n

BayerGB10p

RAW Bayer

BayerGB icon-bayer-gb

10

-

y

n

1.25 byte = 10 bit

5n/4

BayerGB12p

RAW Bayer

BayerGB icon-bayer-gb

12

-

y

n

1.5 byte = 12 bit

3n/2

BayerGB10g40*

RAW Bayer

BayerGB icon-bayer-gb

10

-

y

y

1.25 byte = 10 bit

5n/4

BayerGB12g24*

RAW Bayer

BayerGB icon-bayer-gb

12

-

y

y

1.5 byte = 12 bit

3n/2

* The pixel format name is followed by "IDS", e. g. BayerGB10g40IDS. This pixel format is preliminary and its name and value may change in a future product version.
