IDS peak 2.10.0 / uEye+ firmware 3.34

IDS Peak comfortSDK, genericSDK, IPL, and AFL developer manuals are external documents. Please contact us if you need them.

Click on to open the "Logger" dialog. This dialog shows you the messages of the IDS peak API.

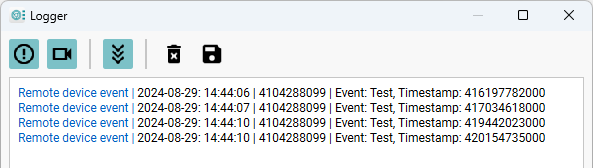

Fig. 253: Logger

The logger notes the exact error message in addition to the date and time. For the complete error message, scroll to the right. The newest messages are at the bottom, while the older messages are at the top.

•: Enables the display of the IDS peak API error messages.

•: Enables the display of the remote device events of the camera.

•: If the icon is enabled, the view will automatically scroll down to the latest message.

•: Deletes all messages in the logger.

•: Saves the messages of the logger as TXT file.
