You can access the camera's NodeMap via the "Generic Data" dialog. Here, you can also adjust all settings, but in a GenICam-like way.

Click on icon-generic-parameters to open the "Generic parameters" dialog.

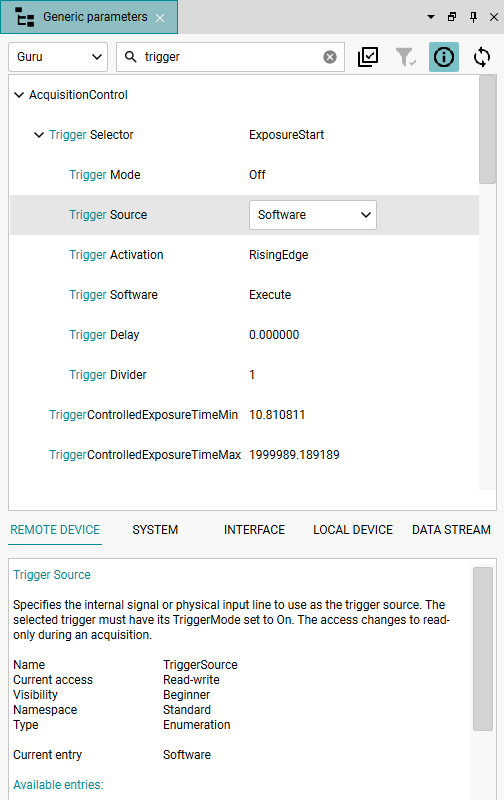

Fig. 240: Generic parameters

Fig. 240: Generic parameters

You have different options to navigate or search for parameters in this dialog .

At the top left is the drop-down list that you use to control the visibility and thus the number of nodes displayed. The following three user levels are selectable:

oBeginner: Only those nodes are visible that require little or no prior knowledge by the user.

oExpert: Advanced camera functions are visible. Using them requires an advanced knowledge of the camera's functionality.

oGuru: All camera functions are set visible, whose use requires a high level of technical knowledge about the functionality of the camera. If camera functions of this category are not set correctly, the camera may be put into a state where it will not function properly.

In addition, you can use the search field to search for specific nodes. The search is not case sensitive. You can search for multiple keywords by entering 'OR' or '|'. The wildcard '*' replaces one or more characters. Use "quotation marks" for an exact match.

At the bottom of the dialog, you switch between the sections "Remote Device", "Interface", "System", "Local Device" and "Data Stream".

To change the values click the corresponding node. You must stop the image acquisition to make nodes editable.

Click on icon-log-peak-errors to display descriptions of the selected nodes in the lower part of the window.

Click on icon-cameramanager-update to update the displayed values if you have disabled the "Camera parameter polling" option in the "Advanced" settings.

hint_info

If a camera performs a reconnect, it will attempt to restore the parameters previously set in the dialog. This depends on the program settings under Advanced.

Designing your own dialogs

The "Generic parameters" dialog allows you to configure your own dialogs.

1.Click on icon-select-parameters so that selection fields are displayed behind the nodes.

2.You can filter for specific nodes using the search.

3.Select the desired nodes.
Use CTRL + A to select all visible nodes.
Use CTRL + SHIFT + A to deselect all visible nodes.

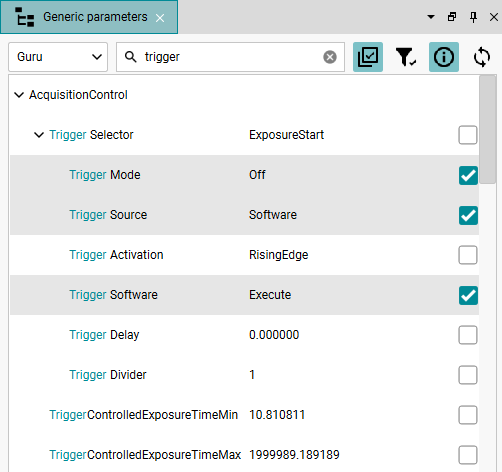

Fig. 241: Create a custom dialog

Fig. 241: Create a custom dialog

4.Click on icon-create-own-dialogto create a custom dialog.

Fig. 242: Custom dialog

Fig. 242: Custom dialog

If you drag the custom dialog out of the camera window, you can configure additional custom dialogs in the "Generic parameters" dialog. In addition, you can save your dialog configuration as a workspace.
