The applicable tolerances for the overall dimensions of PCBs are higher than the tolerances for housing dimensions. |
 |
NOTICE! Make sure to avoid mechanical or electrical damage of the printed circuit board or its connections. Do not touch the printed circuit board while it is powered. Always hold the board by the edges to avoid the risk of electrostatic discharge damage. |
All four mounting holes of the camera are potential free and have no connection to shield or ground.
Dimensions of the board level version
The PCB version can optionally equipped with or without S-mount lens holder (M12). The camera weight is 24 g with lens holder and 10 g without lens holder.

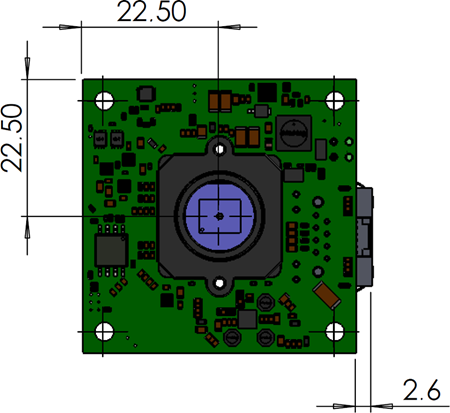

Fig. 599: GigE uEye LE with S-mount - front view

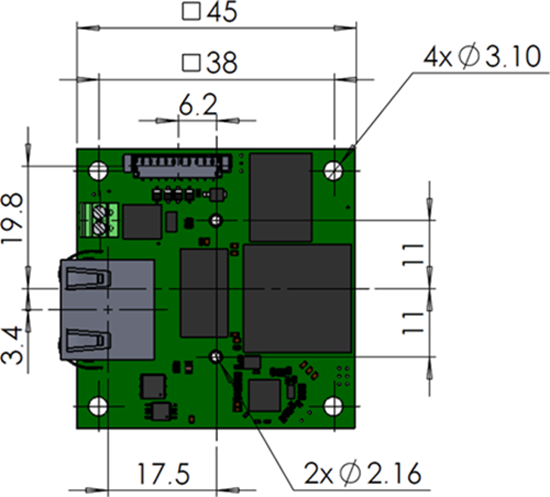

Fig. 600: GigE uEye LE with S-mount - rear view

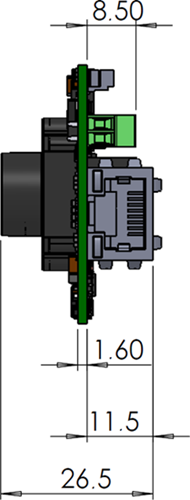

Fig. 601: GigE uEye LE with S-mount - side view (without lens holder 15.1 mm)
Lens holder
A plastic S-mount lens holder (M12) for lenses can be mounted. Because of space the lens holder of Lensation are provided.
|
The lens holder is attached with two plastic tapping screws M1.8 on the board. |
 Fig. 602: SH02M13 - top view |

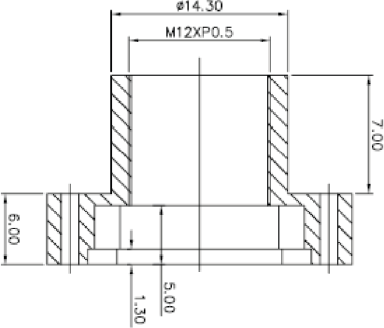

 Fig. 603: SH02M13 - side view |
