Mechanical specifications GigE uEye RE PoE

Scroll Previous Top Next More

hint_info

The following tolerances apply to the drawings in the "Mechanical specifications" chapter:

Length and angles: ISO 2768-f

Shape and position: ISO 2768-H

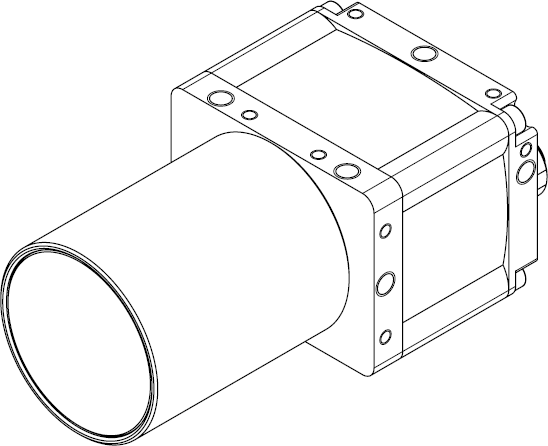

Fig. 627: GigE uEye RE PoE

Fig. 627: GigE uEye RE PoE

camera-gige-ueye-re-poe-3d-back

Lens mount

Enclosure IP code

Weight

C-mount

IP 65/IP 67

175 g (CMOS)

195 g (CCD)

hint_notice

NOTICE! The camera connectors may be damaged if you install or remove the camera with plugged in cables. Therefore, first unplug the GigEUSB and/or I/O cable from the camera.

hint_notice

Note on the IP 65/67 standards

The GigE uEye RE PoE housing version is IP 65/67 compliant. The following requirements must be met for conformance to the IPĀ 65/67 standards:

Cables must be attached to both connectors during operation.

A lens tube must be connected.

Attention: The GigE uEye RE PoE has not been approved for underwater use.

hint_info

Note on the rubber gasket at the tube thread (camera side)

Check the rubber gasket for damage before mounting a protective lens tube. If you will be using the camera without a lens tube for a prolonged time, remove the rubber gasket and store it away from light, as UV light and ozone can cause the gasket to become porous.

If you need to grease the thread, use only silicone oil or silicone grease.

CMOS/CCD cameras

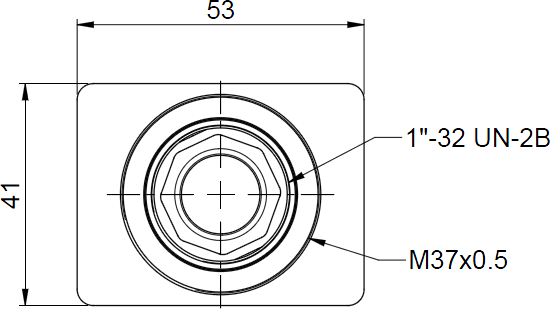

Fig. 628: GigE uEye RE PoE - front view

Fig. 628: GigE uEye RE PoE - front view

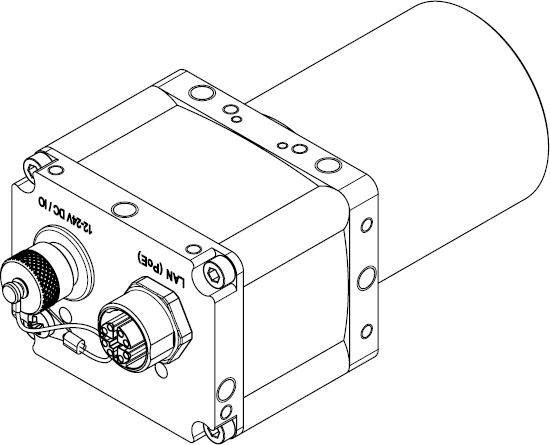

Fig. 629: GigE uEye RE PoE -  rear view

Fig. 629: GigE uEye RE PoE -  rear view

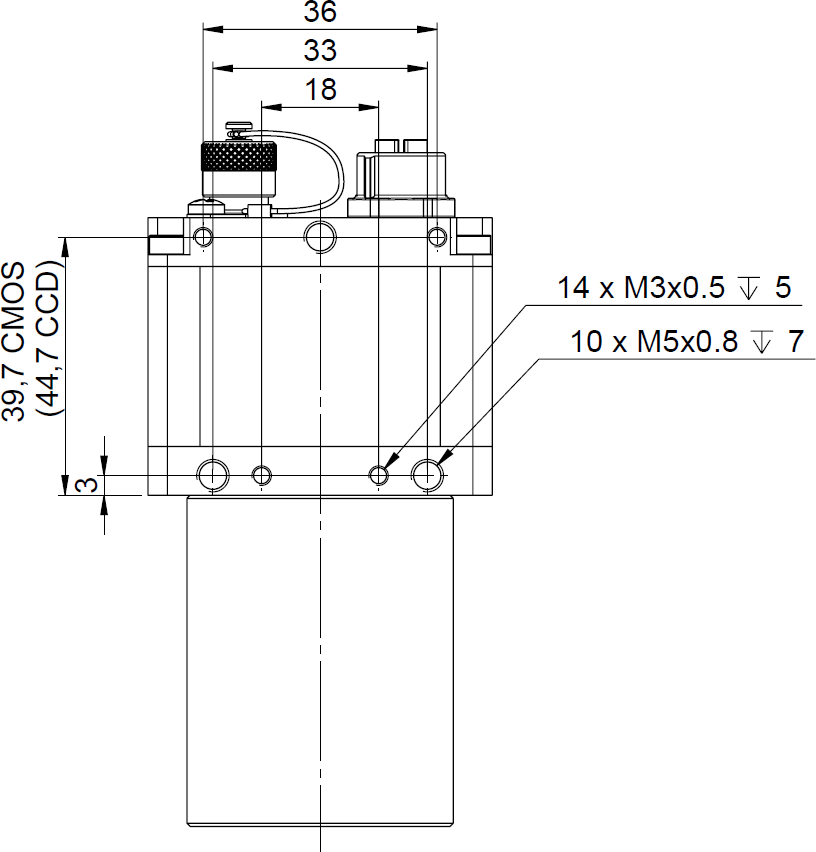

Fig. 630: GigE uEye RE PoE -  top view (with lens tube)

Fig. 630: GigE uEye RE PoE -  top view (with lens tube)

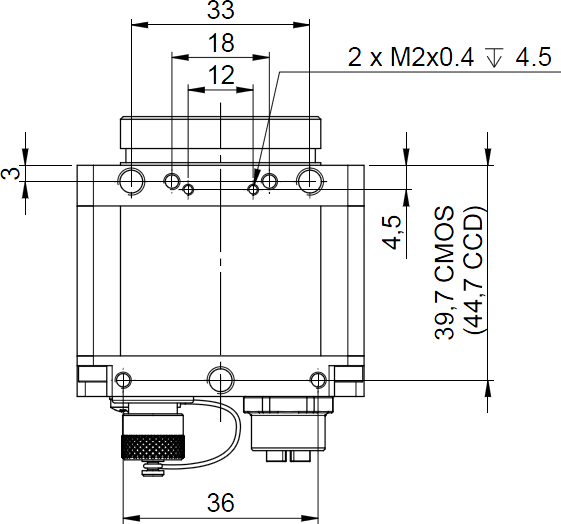

Fig. 631: GigE uEye RE PoE -  bottom view

Fig. 631: GigE uEye RE PoE -  bottom view

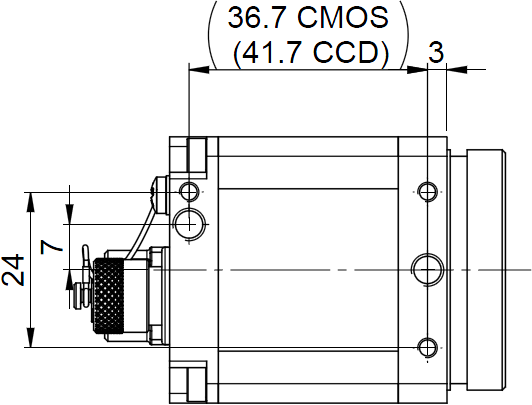

Fig. 632: GigE uEye RE PoE -  side view (right)

Fig. 632: GigE uEye RE PoE -  side view (right)

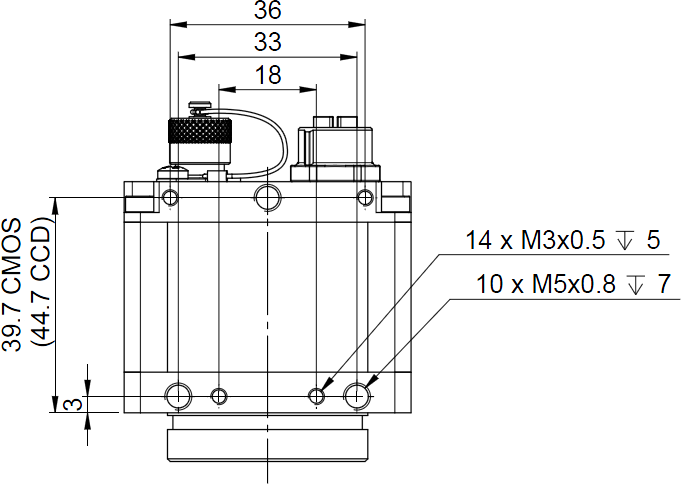

Fig. 633: GigE uEye RE PoE -  top view

Fig. 633: GigE uEye RE PoE -  top view

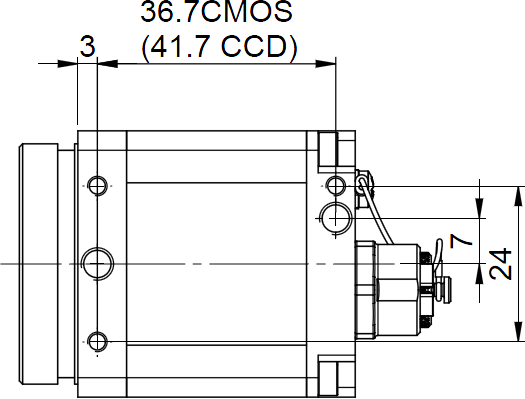

Fig. 634: GigE uEye RE PoE -  side view (left)

Fig. 634: GigE uEye RE PoE -  side view (left)
