OEM version 1 GigE uEye SE (C-mount without housing)

Scroll Previous Top Next More
hint_notice

NOTICE! Make sure to avoid mechanical or electrical damage of the printed circuit board or its connections. Do not touch the printed circuit board while it is powered. Always hold the board by the edges to avoid the risk of electrostatic discharge damage.

hint_info

The applicable tolerances for the overall dimensions of PCBs are higher than the tolerances for housing dimensions.

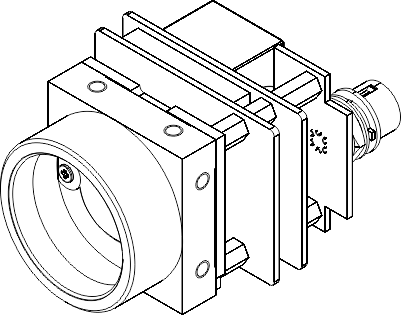

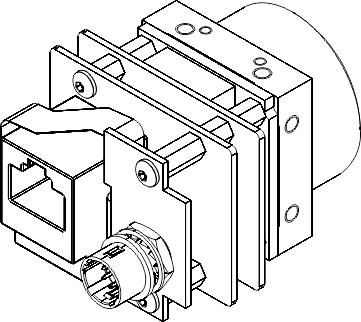

Fig. 673: GigE uEye SE OEM version with CMOS - 3D view

Fig. 673: GigE uEye SE OEM version with CMOS - 3D view

camera-gige-ueye-se-cmount-boardlevel-3d-back

CMOS/CCD cameras

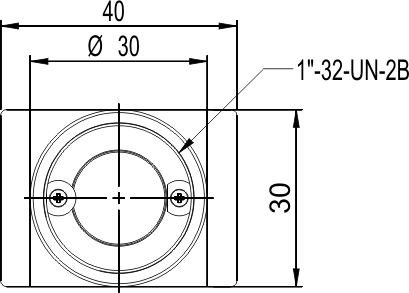

Fig. 674: GigE uEye SE OEM version - Front view

Fig. 674: GigE uEye SE OEM version - Front view

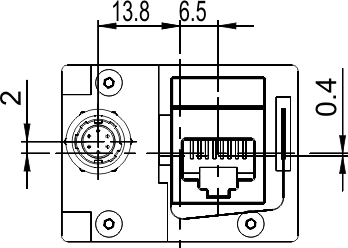

Fig. 675: GigE uEye SE OEM version - Rear view

Fig. 675: GigE uEye SE OEM version - Rear view

CCD cameras

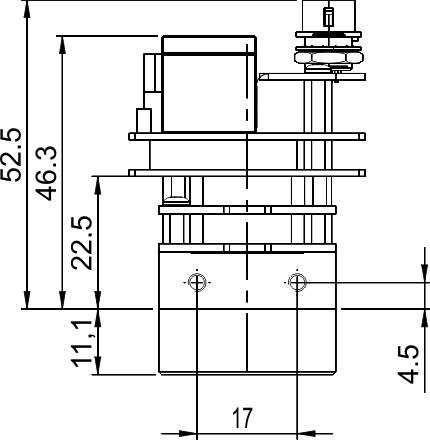

Fig. 676: GigE uEye SE OEM version - Top view (CCD)

Fig. 676: GigE uEye SE OEM version - Top view (CCD)

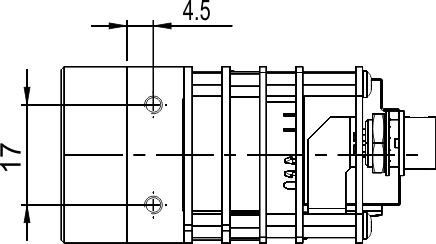

Fig. 677: GigE uEye SE OEM version - Side view (CCD)

Fig. 677: GigE uEye SE OEM version - Side view (CCD)

CMOS cameras

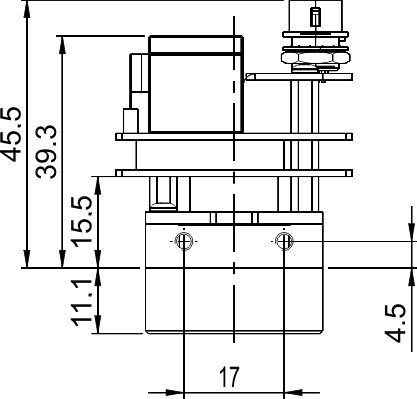

Fig. 678: GigE uEye SE OEM version - Top view (CMOS)

Fig. 678: GigE uEye SE OEM version - Top view (CMOS)

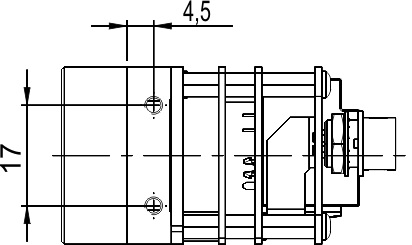

Fig. 679: GigE uEye SE OEM version - Side view (CMOS)

Fig. 679: GigE uEye SE OEM version - Side view (CMOS)
