Fig. 402: USB 3 uEye LE (from top)

Fig. 402: USB 3 uEye LE (from top)

Fig. 403: USB 3 uEye LE (from bottom)

Fig. 403: USB 3 uEye LE (from bottom)

Lens mount

Enclosure IP code

Weight

CS-/C-mount

IP 30 (with housing)

39 g

hint_notice

NOTICE! The camera connectors may be damaged if you install or remove the camera with plugged in cables. Therefore, first unplug the GigEUSB and/or I/O cable from the camera.

Dimensions of the housing version

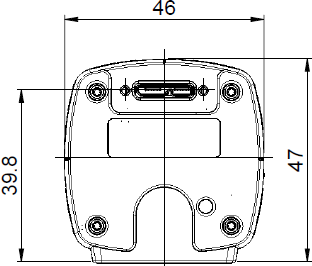

Fig. 404: USB 3 uEye LE - back view

Fig. 404: USB 3 uEye LE - back view

Fig. 405: USB 3 uEye LE - front view

Fig. 405: USB 3 uEye LE - front view

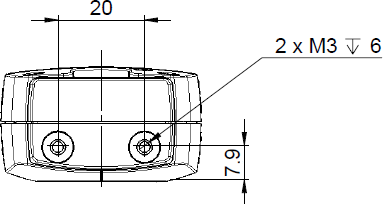

Fig. 406: USB 3 uEye LE - bottom view

Fig. 406: USB 3 uEye LE - bottom view

Fig. 407: USB 3 uEye LE - top view

Fig. 407: USB 3 uEye LE - top view

Fig. 408: USB 3 uEye LE - side view

Fig. 408: USB 3 uEye LE - side view
