The following tolerances apply to the drawings in the "Mechanical specifications" chapter: •Length and angles: ISO 2768-f •Shape and position: ISO 2768-H |
 Fig. 431: USB 3 uEye ML (from top) |
 Fig. 432: USB 3 uEye ML (from bottom) |
Lens mount |
Enclosure IP code |
Weight |
|---|---|---|
CS-mount |
IP 30 |
41 g |
 |
NOTICE! The camera connectors may be damaged if you install or remove the camera with plugged in cables. Therefore, first unplug the GigEUSB and/or I/O cable from the camera. |
 Fig. 433: USB 3 uEye ML - front view |

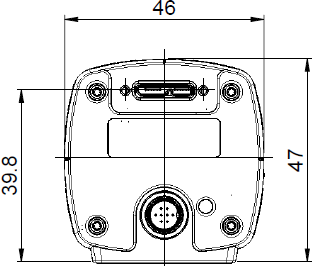

 Fig. 434: USB 3 uEye ML - back view |

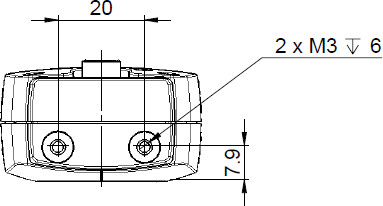

 Fig. 435: USB 3 uEye ML - bottom view |

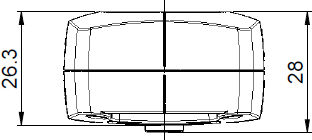

 Fig. 436: USB 3 uEye ML - top view |
 Fig. 437: USB 3 uEye ML - side view |
|
