Sensor specification



Sensor type

CMOS

Shutter

Rolling shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

QXSGA

Resolution

5.04 MPix

Resolution (h x v)

2592 x 1944 pixels

Aspect ratio

4:3

ADC (analog-to-digital converter)

8 bit

Optical sensor class

1/4"

Optical area

3.629 x 2.722 mm

Optical sensor diagonal

4.536 mm (1/3.53")

Pixel size

1.4 µm, square

Manufacturer

OmniVision

Sensor name, color

OV5640

Special features

Integrated autofocus lens, manual and automatic modes, see is_Focus()

Hardware color conversion (YCbCr format)

Automatic hotpixel correction in the sensor

Sensor internal controls for exposure (AES), white balance (AWB), and gain (AGC), see is_SetAutoParameter()

JPEG compression, see is_DeviceFeature()

See also Special features UI-1007XS

Lens



Viewing angle

Horizontal: 52°

Vertical: 40.2°

Diagonal: 62.7°

Max. aperture (F)

1:2.8 ± 5 %

Focus

Linear drive: autofocus/manual via software

Focus range

100 mm ~ infinity

Gain



Color model (master/RGB)

6,8x/-

Analog gain boost

-

hint_info

You can easily calculate the working distance and the field of view for the UI-1007XS using the field of view calculator at https://en.ids-imaging.com/xs-fieldofview.html.

Supported image profiles

Format ID

Resolution

Name

4

2592 x 1944

5M

5

2048 x 1536

3M

6

1920 x 1080

Full HD 16:9

8

1280 x 960

1.2M 4:3

9

1280 x 720

HD 16:9

12

800 x 480

WVGA

13

640 x 480

VGA

20

1600 x 1200

UXGA

31

640 x 480

VGA 30 fps

32

800 x 480

WVGA 30 fps

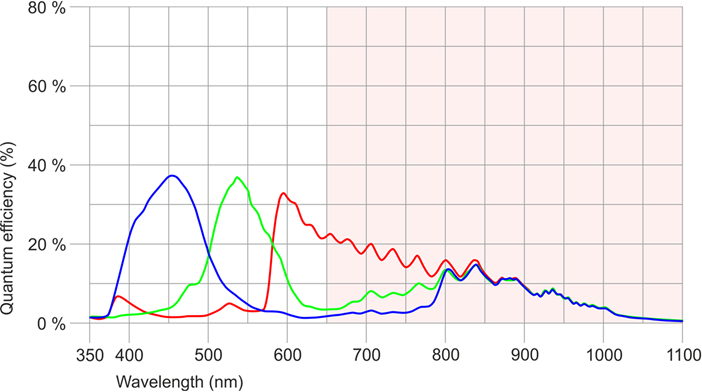

Quantum efficiency

Fig. 205: UI-1007XS (color)
