Sensor specification



Sensor type

CMOS

Shutter

Rolling shutter

Readout mode

Progressive scan

Resolution class

SXGA

Resolution

1.31 MPix

Resolution (h x v)

1280 x 1024 pixels

Aspect ratio

5:4

ADC (analog-to-digital converter)

10 bits

Optical sensor class

1/2"

Optical area

6.656 x 5.325 mm

Optical sensor diagonal

8.52 mm (1/1.88")

Pixel size

5.20 µm, square

Micro lens shift

Manufacturer

onsemi

Sensor name, monochrome

MT9M001STM

Gain



Monochrome model (master gain)

13x

Analog gain boost

1.5x

Supported image profiles

Format ID

Resolution

Name

8

1280 x 960

1.2M 4:3

9

1280 x 720

HD 16:9

11

960 x 480

WVGA 2:1

12

800 x 480

WVGA

13

640 x 480

VGA

14

640 x 360

VGA 16:9

15

400 x 240

WQVGA

16

352 x 288

CIF

17

288 x 352

CIF Portrait

18

320 x 240

QVGA

19

240 x 320

QVGA Portrait

24

768 x 576

CCIR

25

1280 x 1024

1.3M SXGA

27

1024 x 768

XGA

28

1024 x 1024

1M

29

800 x 600

SVGA

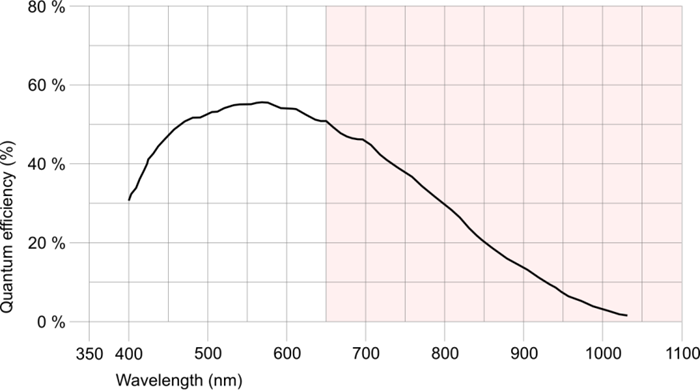

Quantum efficiency

Fig. 225: UI-154x/UI-554x (monochrome)

Fig. 225: UI-154x/UI-554x (monochrome)

The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
