Sensor specification |
|
Sensor type |
CMOS |
Shutter |
Rolling shutter |
Characteristic |
Linear |
Readout mode |
Progressive scan |
Resolution class |
UXGA |
Resolution |
1.92 MPix |
Resolution (h x v) |
1600 x 1200 pixels |
Aspect ratio |
4:3 |
8 bits |
|
Optical sensor class |
1/3" |
Optical area |
4.480 x 3.360 mm |
Optical sensor diagonal |
5.60 mm (1/2.86") |
Pixel size |
2.80 µm, square |
20° |
|
Manufacturer |
onsemi |
Sensor name, color |
MT9D131STC |
Gain |
|
Color model (master/RGB) |
5.8x/3.1x |
Analog gain boost |
2.0x |
Supported image profiles
Format ID |
Resolution |
Name |
|---|---|---|
8 |
1280 x 960 |
1.2M 4:3 |
9 |
1280 x 720 |
HD 16:9 |
11 |
960 x 480 |
WVGA 2:1 |
12 |
800 x 480 |
WVGA |
13 |
640 x 480 |
VGA |
14 |
640 x 360 |
VGA 16:9 |
15 |
400 x 240 |
WQVGA |
16 |
352 x 288 |
CIF |
17 |
288 x 352 |
CIF Portrait |
18 |
320 x 240 |
QVGA |
19 |
240 x 320 |
QVGA Portrait |
20 |
1600 x 1200 |
UXGA |
24 |
768 x 576 |
CCIR |
25 |
1280 x 1024 |
1.3M SXGA |
27 |
1024 x 768 |
XGA |
28 |
1024 x 1024 |
1M |
29 |
800 x 600 |
SVGA |
30 |
1360 x 1024 |
1.4M 4:3 |

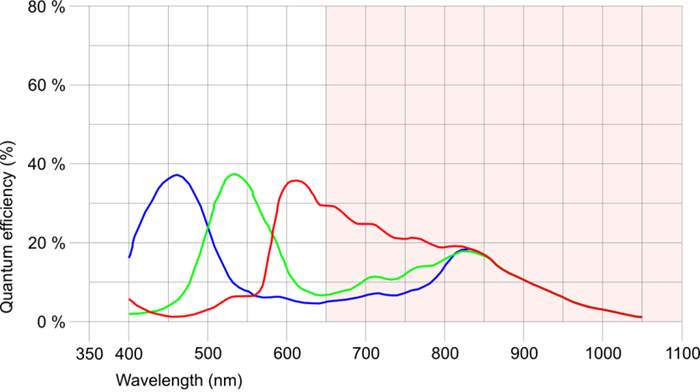

Quantum efficiency
Fig. 228: UI-155x/UI-555x (color)
The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
