Sensor specification



Sensor type

CMOS

Shutter

Rolling shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

SXGA

Resolution

1.31 MPix

Resolution (h x v)

1280 x 1024 pixels

Aspect ratio

5:4

ADC (analog-to-digital converter)

10 bits

Optical sensor class

1/3"

Optical area

4.608 x 3.686 mm

Optical sensor diagonal

5.90 mm (1/2.71")

Pixel size

3.60 µm, square

Micro lens shift

25°

Manufacturer

onsemi

Sensor name, color

MT9M131STC

Gain



Color model (master/RGB)

4.27x/3.1x

Analog gain boost

2.0x

Supported images sizes

Format ID

Resolution

Name

8

1280 x 960

1.2M 4:3

9

1280 x 720

HD 16:9

11

960 x 480

WVGA 2:1

12

800 x 480

WVGA

13

640 x 480

VGA

14

640 x 360

VGA 16:9

15

400 x 240

WQVGA

16

352 x 288

CIF

17

288 x 352

CIF Portrait

18

320 x 240

QVGA

19

240 x 320

QVGA Portrait

24

768 x 576

CCIR

25

1280 x 1024

1.3M SXGA

27

1024 x 768

XGA

28

1024 x 1024

1M

29

800 x 600

SVGA

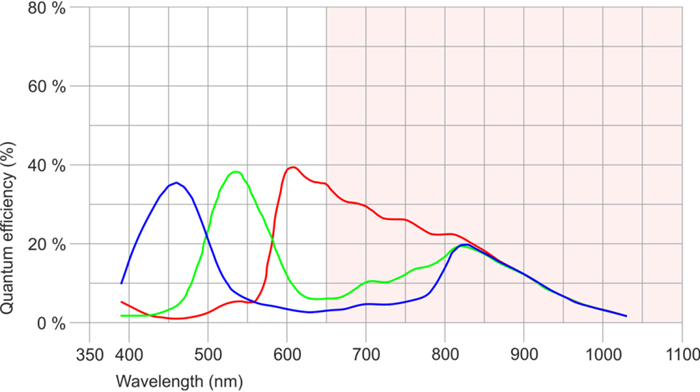

Quantum efficiency

Fig. 232: UI-164x/UI-564x (color)

Fig. 232: UI-164x/UI-564x (color)

The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
