Sensor specification |
|
Sensor type |
CCD |
Shutter |
Global shutter |
Characteristic |
Linear |
Readout mode |
Progressive scan |
Resolution class |
SXGA |
Resolution |
1.31 MPix |
Resolution (h x v) |
1280 x 1024 pixels |
Aspect ratio |
5:4 |
12 bits |
|
Optical sensor class |
1/2" |
Optical area |
5.952 x 4.762 mm |
Optical sensor diagonal |
7.62 mm (1/2.1") |
Pixel size |
4.65 µm, square |
0° |
|
Manufacturer |
Sony |
Sensor name, monochrome |
ICX205AL |
Sensor name, color |
ICX205AK |
Gain |
|
Monochrome model (master gain) |
13.66x |
Color model (master/RGB) |
8.9/4.0x |
Analog gain boost |
2.0x (monochrome model only) |
Supported image profiles
Format ID |
Resolution |
Name |
|---|---|---|
8 |
1280 x 960 |
1.2M 4:3 |
9 |
1280 x 720 |
HD 16:9 |
11 |
960 x 480 |
WVGA 2:1 |
12 |
800 x 480 |
WVGA |
13 |
640 x 480 |
VGA |
24 |
768 x 576 |
CCIR |
25 |
1280 x 1024 |
1.3M SXGA |
27 |
1024 x 768 |
XGA |
28 |
1024 x 1024 |
1M |
29 |
800 x 600 |
SVGA |
Relative sensor sensitivity

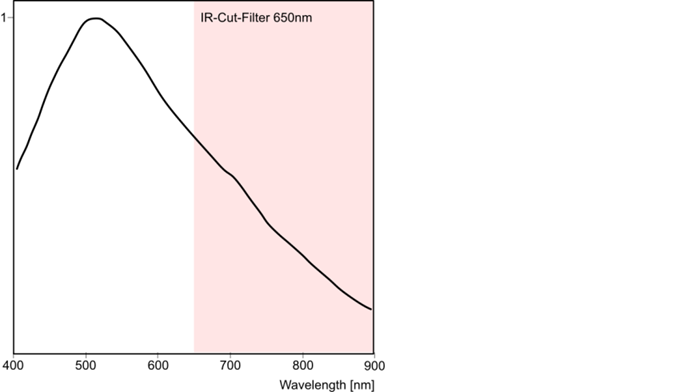

Fig. 314: Sensor sensitivity of the UI-224x/UI-624x (monochrome)

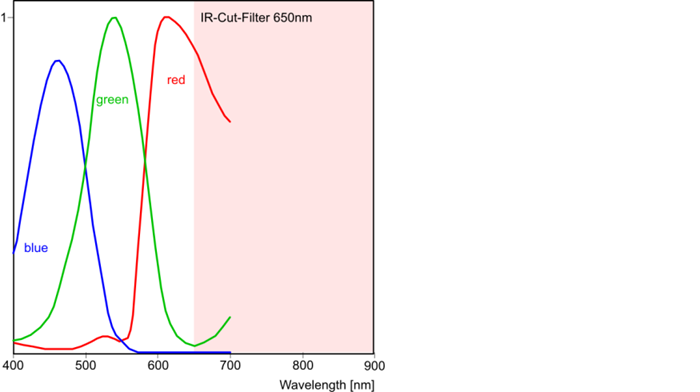

Fig. 315: Sensor sensitivity of the UI-224x/UI-624x (color)
The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
