Sensor specification |
|
Sensor type |
CCD |
Shutter |
Global shutter |
Characteristic |
Linear |
Readout mode |
Progressive scan |
Resolution class |
UXGA |
Resolution |
1.92 MPix |
Resolution (h x v) |
1600 x 1200 pixels |
Aspect ratio |
4:3 |
12 bits |
|
Optical sensor class |
1/1.8" |
Optical area |
7.040 x 5.280 mm |
Optical sensor diagonal |
8.80 mm (1/1.82") |
Pixel size |
4.40 µm, square |
0° |
|
Manufacturer |
Sony |
Sensor name, monochrome |
ICX274AL |
Sensor name, color |
ICX274AQ |
Gain |
|
Monochrome model (master gain) |
13.78x |
Color model (master/RGB) |
8.9x/4.0x |
Analog gain boost |
2.0x (monochrome model only) |
Supported image profiles
Format ID |
Resolution |
Name |
|---|---|---|
8 |
1280 x 960 |
1.2M 4:3 |
9 |
1280 x 720 |
HD 16:9 |
11 |
960 x 480 |
WVGA 2:1 |
12 |
800 x 480 |
WVGA |
13 |
640 x 480 |
VGA |
20 |
1600 x 1200 |
UXGA |
24 |
768 x 576 |
CCIR |
25 |
1280 x 1024 |
1.3M SXGA |
27 |
1024 x 768 |
XGA |
28 |
1024 x 1024 |
1M |
29 |
800 x 600 |
SVGA |
30 |
1360 x 1024 |
1.4M 4:3 |
Relative sensor sensitivity

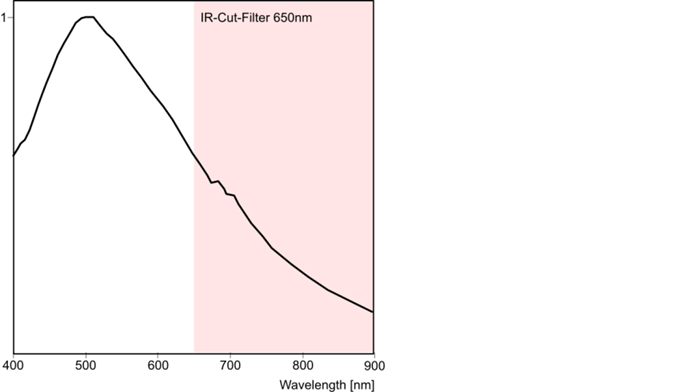

Fig. 320: Sensor sensitivity of the UI-225x/UI-625x (monochrome)

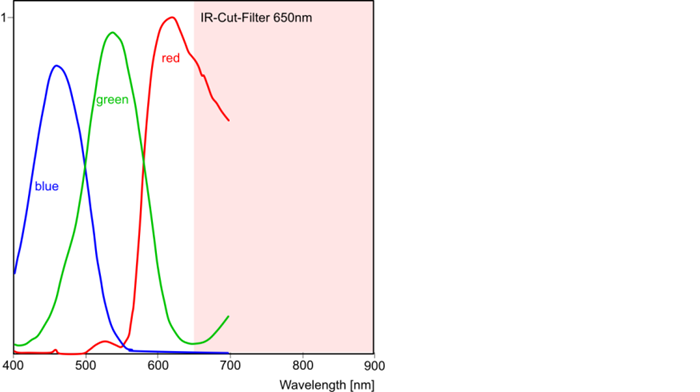

Fig. 321: Sensor sensitivity of the UI-225x/UI-625x (color)
The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
