Sensor specification



Sensor type

CCD

Shutter

Global shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

VGA

Resolution

0.31 MPix

Resolution (h x v)

640 x 480 pixels

Aspect ratio

4:3

ADC (analog-to-digital converter)

12 bits

Optical sensor class

1/3"

Optical area

4.736 x 3.552 mm

Optical sensor diagonal

5.92 mm (1/2.70")

Pixel size

7.40 µm, square

Micro lens shift

Manufacturer

Sony

Sensor name, monochrome

ICX424AL

Sensor name, color

ICX424AQ

Special features

Supports long time exposure in trigger mode

Gain



Monochrome model (master gain)

18.0x

Color model (master/RGB)

12.0x/4.0x

Analog gain boost

2.0x (monochrome model only)

Supported image profiles

Format ID

Resolution

Name

13

640 x 480

VGA

14

640 x 360

VGA 16:9

15

400 x 240

WQVGA

16

352 x 288

CIF

17

288 x 352

CIF Portrait

18

320 x 240

QVGA

19

240 x 320

QVGA Portrait

Relative sensor sensitivity

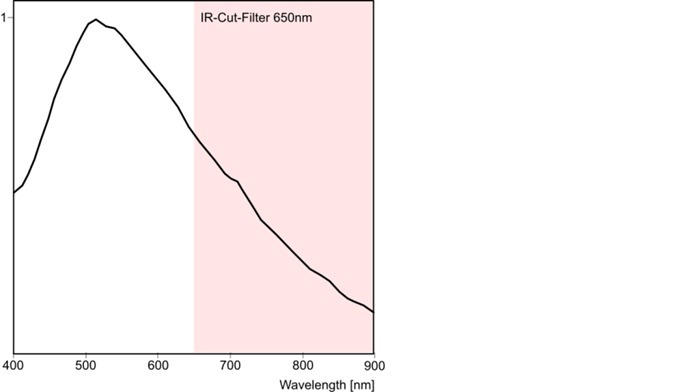

Fig. 332: Sensor sensitivity of the UI-241x/UI-641x (monochrome)

Fig. 332: Sensor sensitivity of the UI-241x/UI-641x (monochrome)

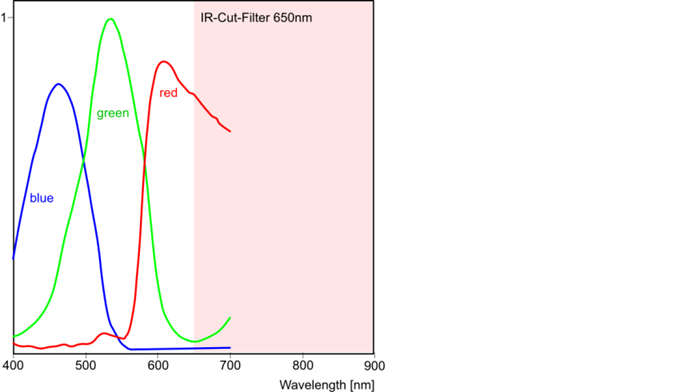

Fig. 333: Sensor sensitivity of the UI-241x/UI-641x (color)

Fig. 333: Sensor sensitivity of the UI-241x/UI-641x (color)

The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
