Sensor specification |
|
Sensor type |
CMOS |
Shutter |
Rolling shutter |
Characteristic |
Linear |
Readout mode |
Progressive scan |
Resolution class |
2 MP |
Resolution |
2.12 MPix |
Resolution (h x v) |
1936 x 1096 pixels |
Aspect ratio |
16:9 |
12 bits |
|
Optical sensor class |
1/2.8" |
Optical area |
5.610 x 3.175 mm |
Optical sensor diagonal |
6.446 mm (1/2.48") |
Pixel size |
2.90 µm, square |
0° |
|
Manufacturer |
Sony |
Sensor name, monochrome |
IMX290LLR-C |
Sensor name, color |
IMX290LQR-C |
Special features |
•UI-386xCP/UI-586x only: IDS line scan ("AOI merge mode") |
Gain |
|
Monochrome model (master gain) |
20x |
Color model (master gain/RGB) |
20x/5x |
Analog gain boost |
20x |
Supported image profiles
Format ID |
Resolution |
Name |
|---|---|---|
6 |
1920 x 1080 |
Full HD 16:9 |
8 |
1280 x 960 |
1.2M 4:3 |
9 |
1280 x 720 |
HD 16:9 |
13 |
640 x 480 |
VGA |
18 |
320 x 240 |
QVGA |
20 |
1600 x 1200 |
UXGA |
25 |
1280 x 1024 |
1.3M SXGA |
27 |
1024 x 768 |
XGA |
28 |
1024 x 1024 |
1M |
29 |
800 x 600 |
SVGA |
35 |
1920 x 1200 |
WUXGA |
36 |
Sensor maximum (1936 x 1096) |
Maximum |
Quantum efficiency

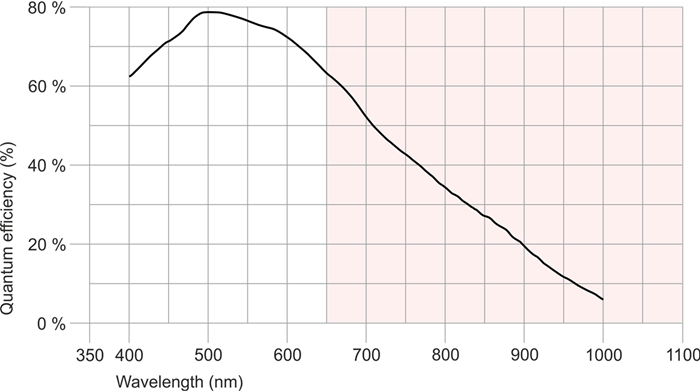

Fig. 287: UI-386x/UI-586x (monochrome)

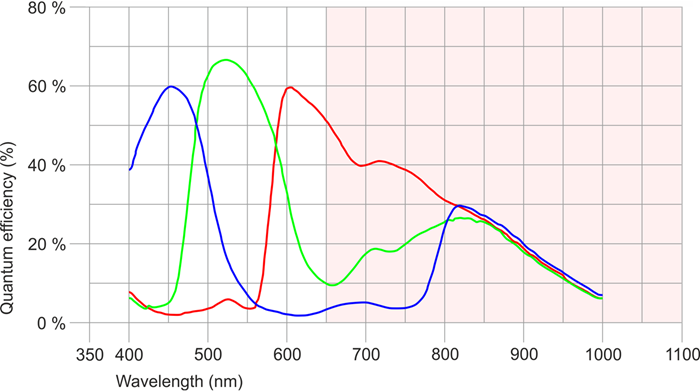

Fig. 288: UI-386x/UI-586x (color)
The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
