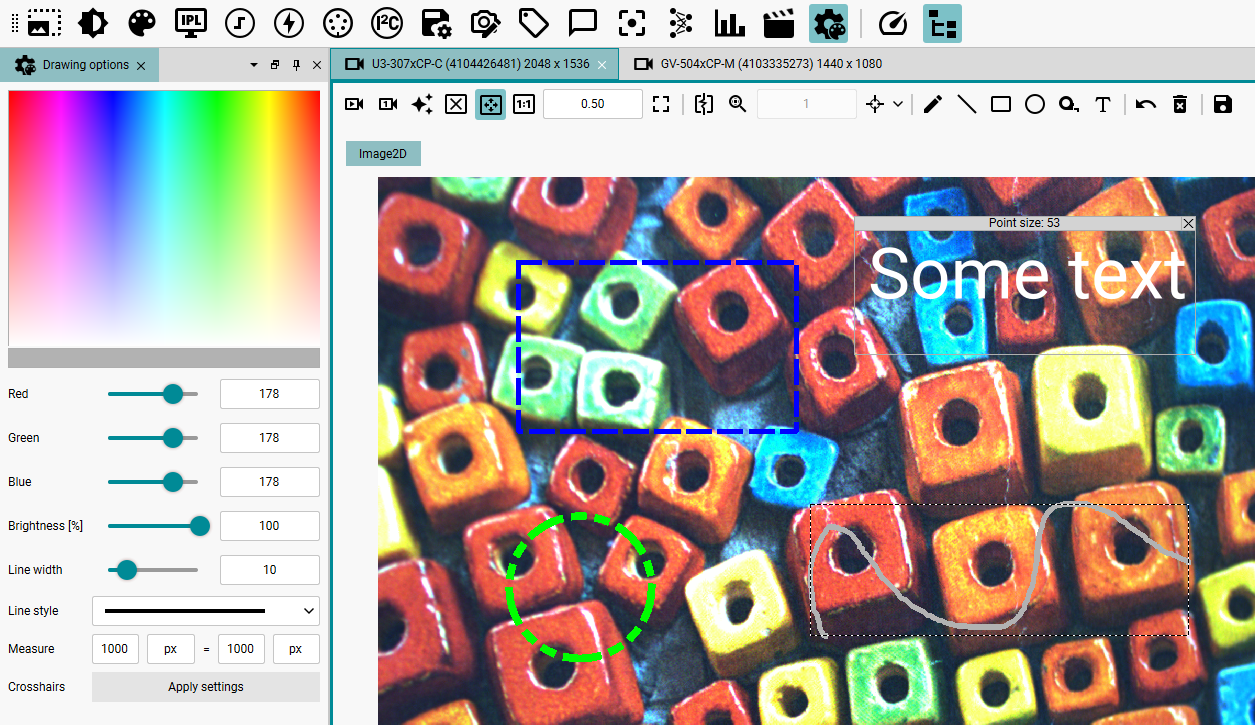

You can edit overlays in the image, e.g. change the color or the line style.

1.After you created the overlays in the image, deselect the drawing tool in the menu bar of the camera window.

2.Open the dialog with the drawing options.

3.Use the mouse to select an element in the image.

4.Change the element properties via the "Drawing options" dialog.

5.Use the mouse to move the element in the image.

6.To delete an element, press the DEL key (see Deleting overlays).
