Measuring tape

IDS Peak comfortSDK, genericSDK, IPL, and AFL developer manuals are external documents. Please contact us if you need them.

Use to draw a measuring line in the image as an overlay. The measuring line uses pixels or the unit that you have previously defined under Drawing options as specification. You should also specify the line width or line style of the measuring line before the measurement.

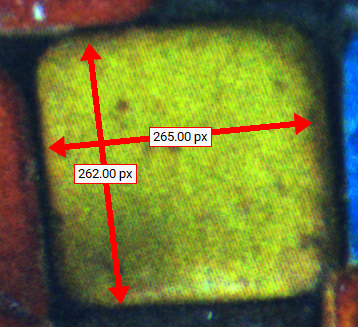

Fig. 246: Measuring in the image
