Tool menu

IDS Peak comfortSDK, genericSDK, IPL, and AFL developer manuals are external documents. Please contact us if you need them.

Use the handle on the left to move and re-position the menu in IDS peak Cockpit.

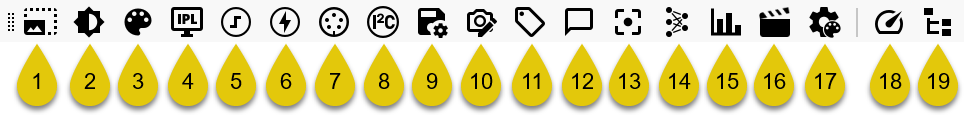

Number	Description
1	Configuring position and size
2	Configuring brightness/frame rate
3	Configuring color settings
4	Using host features
5	Configuring image acquisition via freerun/trigger
6	Configuring flash
7	Configuring GPIOs
8	Reading and writing I2C data
9	Saving/loading camera settings
10	Reading/writing the camera memory
11	Enabling chunk data
12	Enabling events
13	Controlling the focus / Measuring image sharpness
14	Executing CNNs in IDS peak Cockpit
15	Displaying the histogram
16	Recording videos
17	Configuring drawing options
18	Opening the performance monitor
19	Opening the "Generic parameters" dialog
