NOTICE! Make sure to avoid mechanical or electrical damage of the printed circuit board or its connections. Do not touch the printed circuit board while it is powered. Always hold the board by the edges to avoid the risk of electrostatic discharge damage. |
The uEye LE USB 3.1 Gen 1 camera models are also available in the AF (active focus) variant.
The mechanical data for each camera model can be found on our website directly at the respective camera model beneath in the "Downloads" tab.

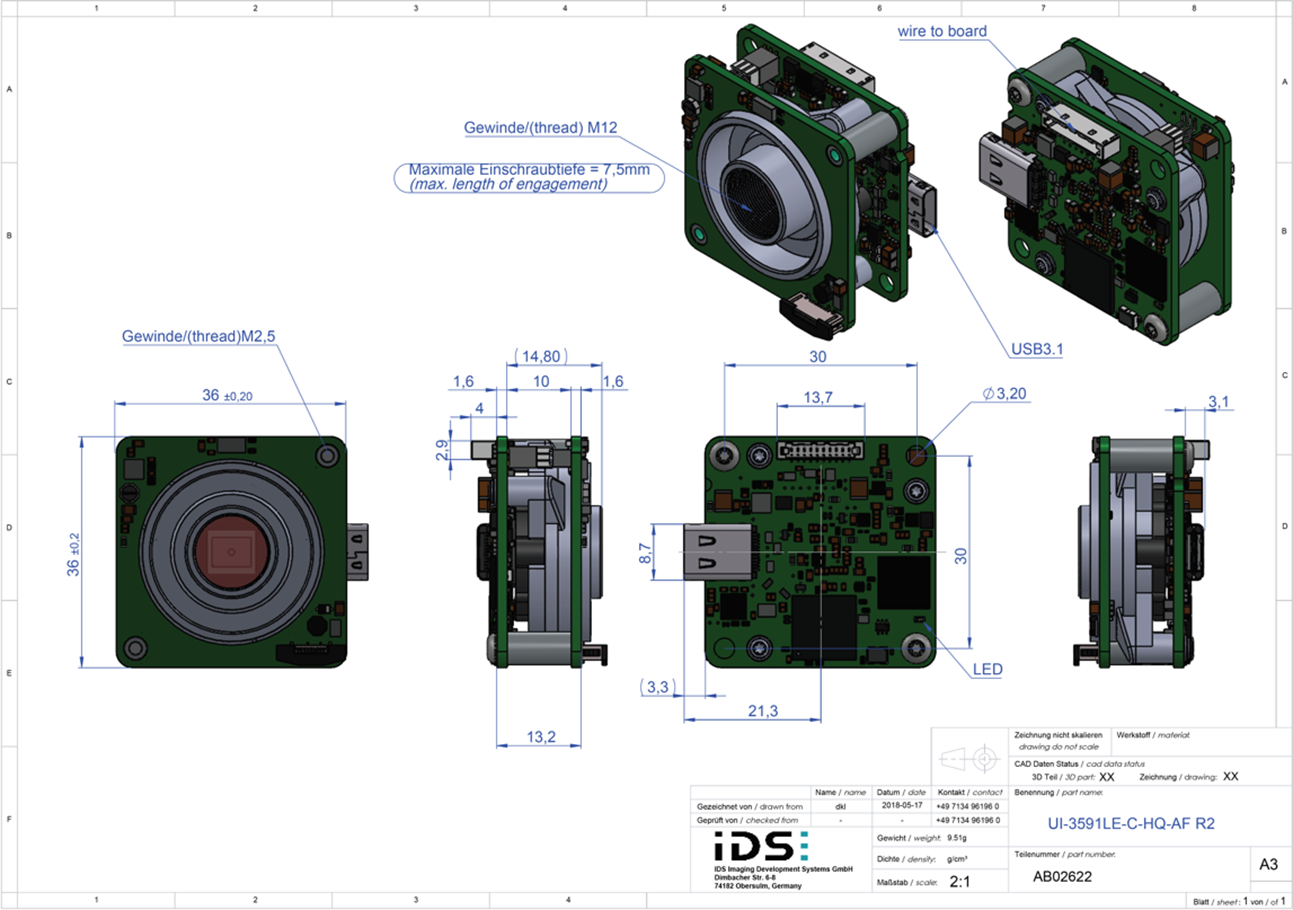

Fig. 336: uEye LE USB 3.1 Gen 1 AF
|
NOTICE! The camera connectors may be damaged if you install or remove the camera with plugged in cables. Therefore, first unplug the GigEUSB and/or I/O cable from the camera. |
|
Follow the manufacturer's instructions for mounting the liquid lens. |
Technical data
Power consumption (in addition to model-specific power consumption) |
35 mA |
Liquid lens specification |
Corning® Artic series liquid lens with 4-pin flex cable (pitch 1 mm) |
Software function
The uEye SDK includes the is_Focus() function to control the focus of the liquid lens. This can also be controlled via the uEye Cockpit (Properties > Focus).
