Notes on PCB version uEye LE USB 3.1 Gen 1

Scroll Previous Top Next More

Using the example of the UI-388xLE, the specifications for maximum temperatures, mounting, shield and ESD protection are provided. The listed data is applicable for all uEye LE USB 3.1 Gen 1 board level versions.

Temperature management

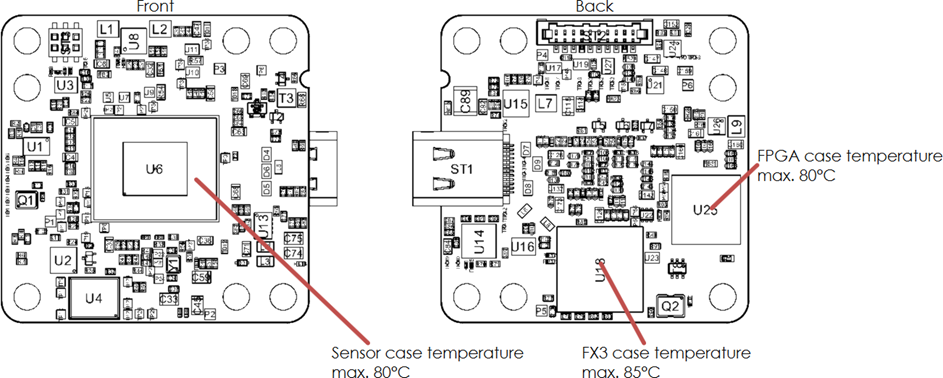

Fig. 337: Temperature information

Fig. 337: Temperature information

Assembly information

The uEye LE USB 3.1 Gen 1 camera can only be assembled from back to front.

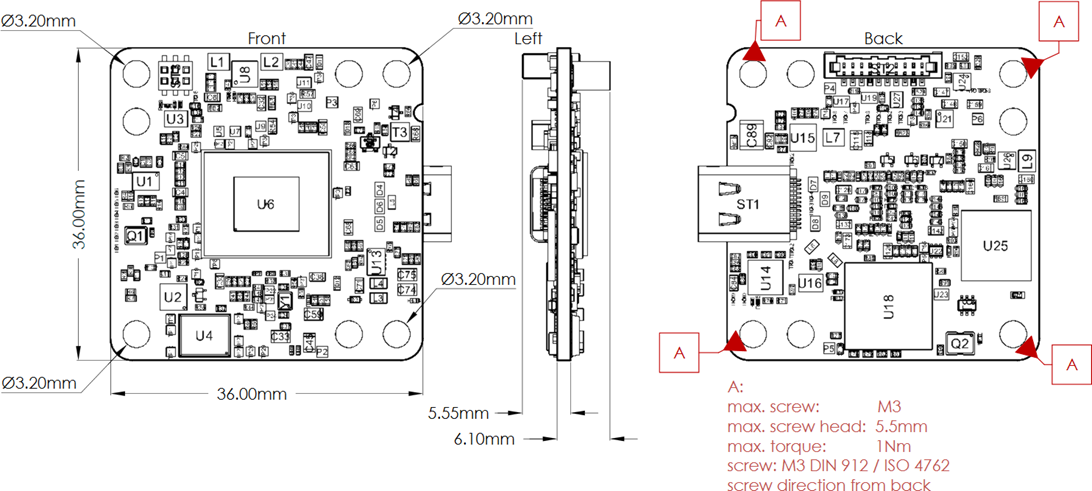

Fig. 338: Mounting details

Fig. 338: Mounting details

Assembly hole attachment

Fig. 339: Assembly hole attachment

Fig. 339: Assembly hole attachment

ESD protection

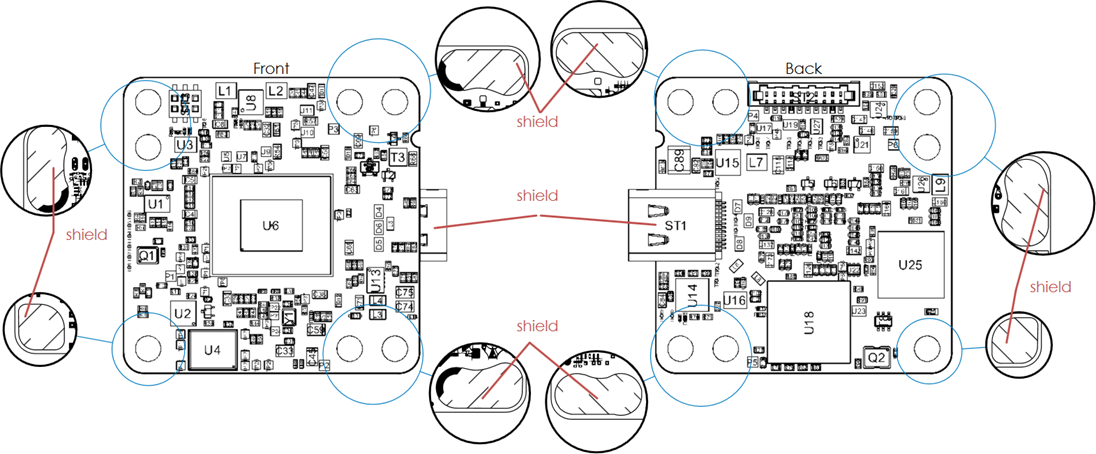

For optimum ESD protection, keep a clearance on all sides of 4 mm from unshielded housings. A smaller clearance is possible with shielded housings.

The PCB should be mounted with the fixing screws on a base connected to the shield. If this is not possible, an insulating connection must be ensured.

The connection cable should have a shield with low-resistance on both sides.

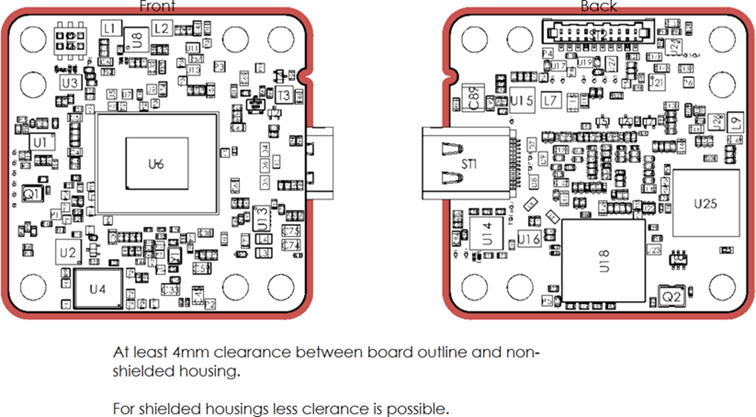

Fig. 340: ESD protection

Fig. 340: ESD protection
