Mechanical specifications uEye SE USB 3.1 Gen 1

Scroll Previous Top Next More

The mechanical data for each camera model can be found on our website directly at the respective camera model beneath in the "Downloads" tab.

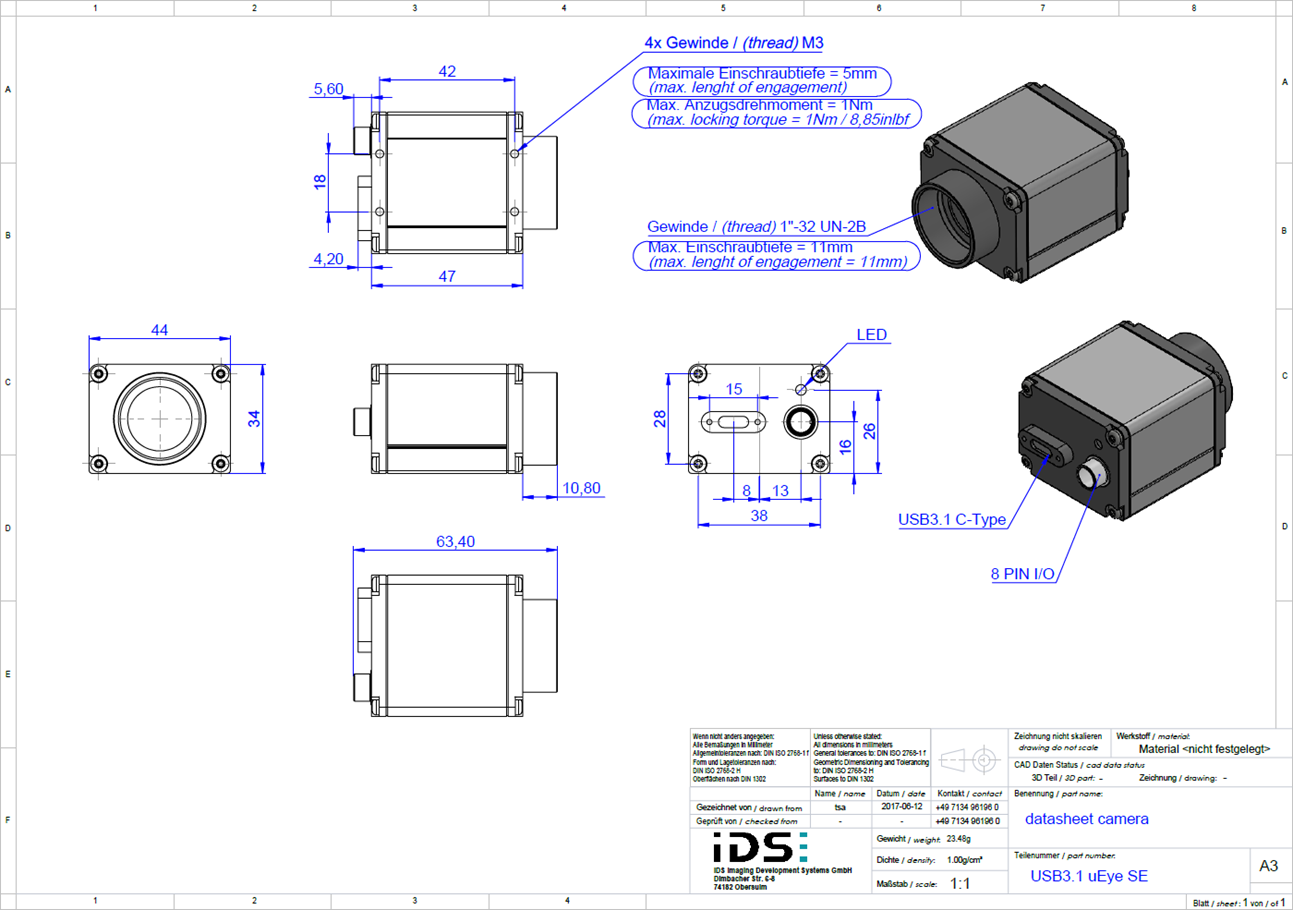

Fig. 353: uEye SE USB 3.1 Gen 1

Fig. 353: uEye SE USB 3.1 Gen 1

hint_notice

NOTICE! The camera connectors may be damaged if you install or remove the camera with plugged in cables. Therefore, first unplug the GigEUSB and/or I/O cable from the camera.

hint_notice

NOTICE! Make sure to avoid mechanical or electrical damage of the printed circuit board or its connections. Do not touch the printed circuit board while it is powered. Always hold the board by the edges to avoid the risk of electrostatic discharge damage.

hint_info

The applicable tolerances for the overall dimensions of PCBs are higher than the tolerances for housing dimensions.
