IDS Software Suite 4.96.1
 Fig. 452: USB uEye LE |
 |
Lens mount |
Enclosure IP code |
Weight |
|---|---|---|
CS-/C-mount |
IP 30 (with housing) |
41 g (with housing) |
 |
NOTICE! The camera connectors may be damaged if you install or remove the camera with plugged in cables. Therefore, first unplug the GigEUSB and/or I/O cable from the camera. |
Dimensions of the housing version

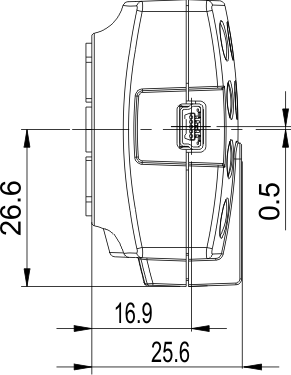

 Fig. 453: USB uEye LE - side view |

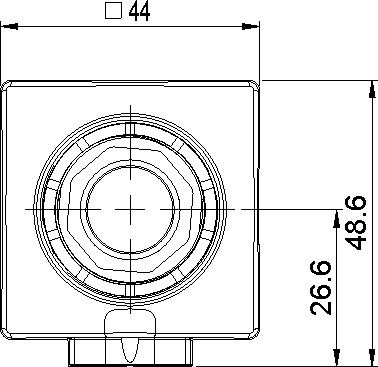

 Fig. 454: USB uEye LE - front view |

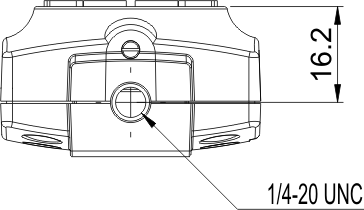

 Fig. 455: USB uEye LE - bottom view |

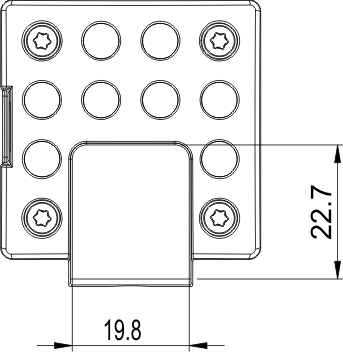

 Fig. 456: USB uEye LE - rear view |
|
The maximum screw length of the tripod screws is 1/4" (6.35 mm). |
