NOTICE! Make sure to avoid mechanical or electrical damage of the printed circuit board or its connections. Do not touch the printed circuit board while it is powered. Always hold the board by the edges to avoid the risk of electrostatic discharge damage. |
The applicable tolerances for the overall dimensions of PCBs are higher than the tolerances for housing dimensions. |
Note on the front panel of the USB uEye SE housing USB uEye SE models introduced before 2008 have a different front panel. On these models, the filter glass is held in the C-mount lens connector by two screws. This applies to the following models: •UI-122x •UI-146x •UI-154x •UI-155x •UI-164x •UI-221x •UI-222x •UI-223x •UI-224x •UI-225x This front panel version is indicated by (V1). |
NOTICE! The camera connectors may be damaged if you install or remove the camera with plugged in cables. Therefore, first unplug the GigEUSB and/or I/O cable from the camera. |
CMOS/CCD cameras
Fig. 523: USB uEye SE OEM version 1 (CMOS) - 3D view |
Fig. 524: USB uEye SE OEM version 1 (CMOS) - 3D view |
Fig. 525: USB uEye SE OEM version 1 - front view |
Fig. 526: USB uEye SE OEM version 1 - front view (V1) |

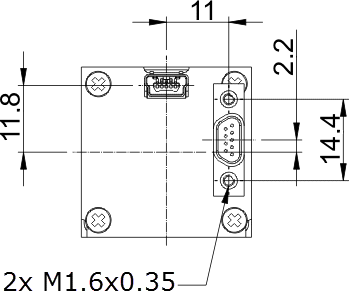

Fig. 527: USB uEye SE OEM version 1 - rear view |
|
CMOS cameras

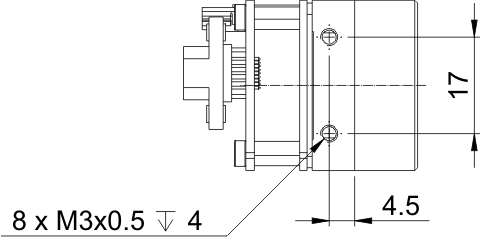

Fig. 528: USB uEye SE OEM version 1 (CMOS) - side view |

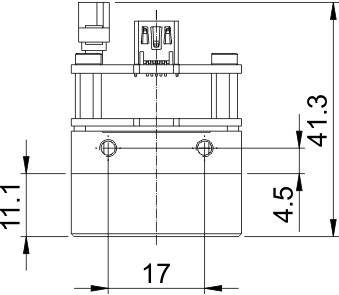

Fig. 529: USB uEye SE OEM version 1 (CMOS) - top view |

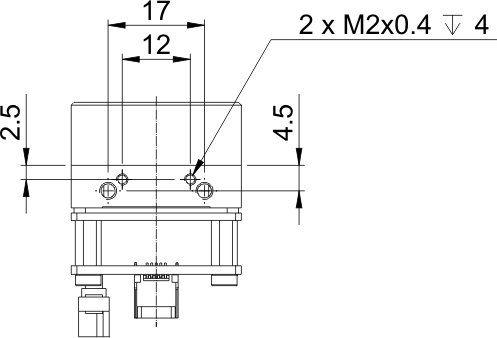

Fig. 530: USB uEye SE OEM version 1 (CMOS) - bottom view |
|
CCD cameras

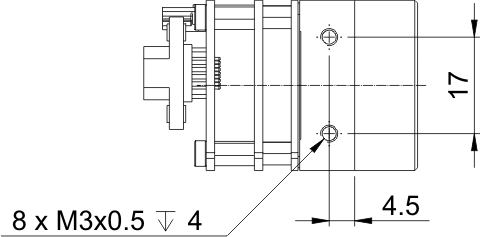

Fig. 531: USB uEye SE OEM version 1 (CCD) - side view |

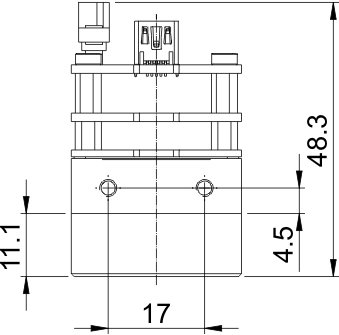

Fig. 532: USB uEye SE OEM version 1 (CCD) - top view |

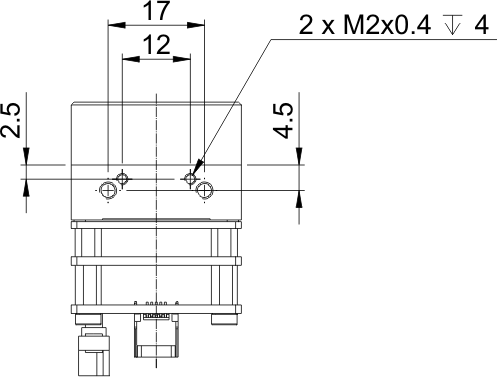

Fig. 533: USB uEye SE OEM version 1 (CCD) - bottom view |
|
