GPIO specifications

The two GPIOs (general purpose I/O) can be used as inputs or outputs. This selection is made by software using the corresponding SDK API functions. Please observe the following criteria:

Input: 3.3 V, max. 3.3 V input voltage

Output: 3.3 V, max. 4.0 mA



Min.

Max.



Output level "Low"

0

0.8

V

Output level "High"

2.4

3.0

V

Output current

0

4

mA

Input level "Low"

0

0.8

V

Input level "High"

2.0

3.0

V

Input current

0

10

µA

hint_notice

NOTICE! The general purpose I/Os of the GigE uEye LE are not potential-free and has no protective circuits.

GPIO wiring

The following figures illustrate GPIO wiring examples.

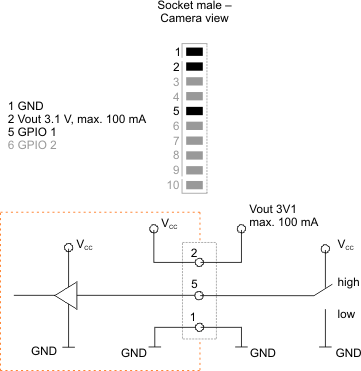

Fig. 622: GPIO input

Fig. 622: GPIO input

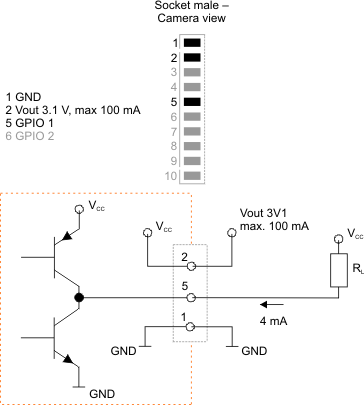

Fig. 623: GPIO output (1)

Fig. 623: GPIO output (1)

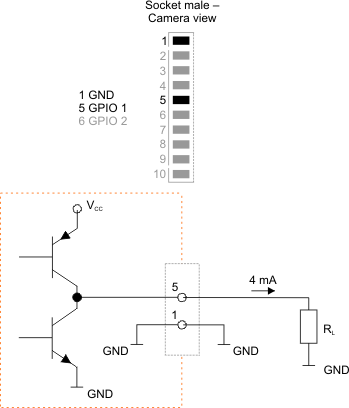

Fig. 624: GPIO output (2)

Fig. 624: GPIO output (2)
