Digital output specifications



Max.



Output current (short-time)

4

mA

Output current (permanent)

4

mA

Output voltage

3.0

V

Breakdown voltage

not applicable (no optocoupler)

V

Collector power dissipation

not applicable (no optocoupler)

mW

hint_notice

NOTICE! The digital output of the GigE uEye LE is not potential-free and has no protective circuits. It is recommended to use the flash as low active. (The digital input of the camera is "low active" for hardware reasons and only changes to "high" during the boot process or if certain camera settings are changed.)

Digital output wiring

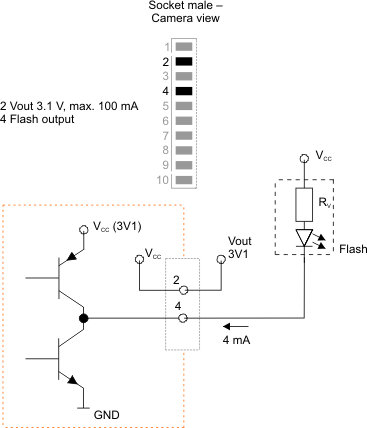

Fig. 620: Wiring of the digital output (flash) - inverted logic

Fig. 620: Wiring of the digital output (flash) - inverted logic

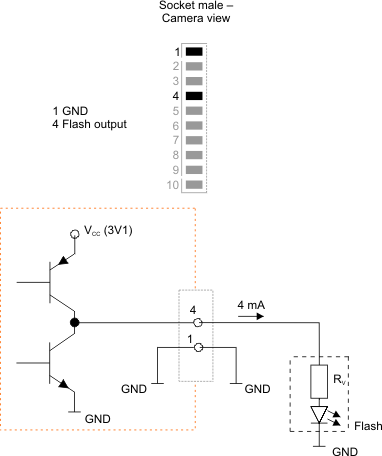

Fig. 621: Wiring of the digital output (flash) - non-inverted logic

Fig. 621: Wiring of the digital output (flash) - non-inverted logic
