Digital output specifications



Symbol

Min.

Typ.

Max.

Unit

Supply voltage

VCC

0

-

3.3

V

Output high range

VOH

3.2

-

3.3

V

Output low range

VOL

-

0

0.2

V

Output current high

IOH

-

-

4

mA

Output current low

IOL

-4

-

-

mA

hint_notice

NOTICE! The digital output of the uEye LE USB 3.1 Gen 1 is not potential-free and has no protective circuits. It is recommended to use the flash as low active.

hint_info

With firmware version 4.95, the behavior of the flash pin (pin 8) of the uEye LE USB 3.1 Gen 1 has been revised. After booting, the pin now outputs a HIGH level. This corresponds to the behavior of the flash pin as in the USB 3 uEye LE camera family.

Digital output wiring

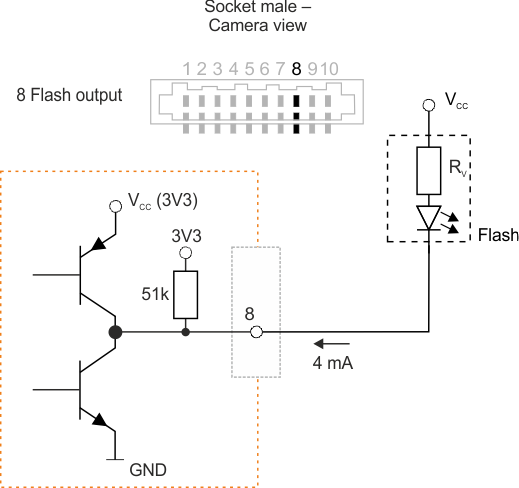

Fig. 346: Wiring of the digital output (flash) - inverted logic

Fig. 346: Wiring of the digital output (flash) - inverted logic

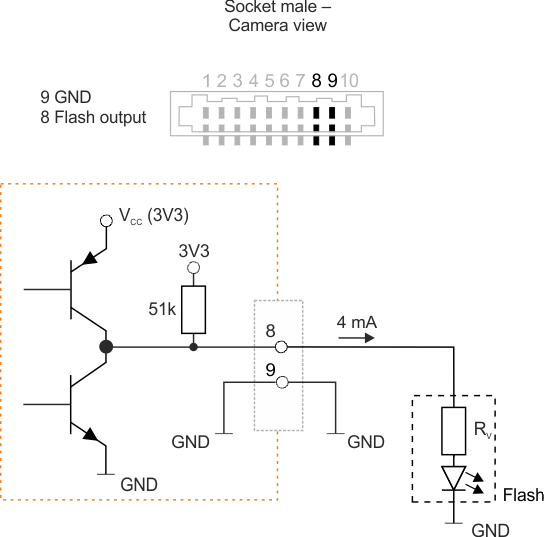

Fig. 347: Wiring of the digital output (flash) - non-inverted logic

Fig. 347: Wiring of the digital output (flash) - non-inverted logic
