Trigger input wiring uEye LE USB 3.1 Gen 1 (PCB version)

Scroll Previous Top Next More

Digital input specification



Symbol

Min.

Typ.

Max.

Unit

Input high range

VIH

2.0

-

3.3

V

Input low range

VIL

0

-

0.8

V

Input leakage current

II

-

-

5

µA

Trigger pulse width (edge)



250





ns

Trigger edge steepness



0.25





V/ns

hint_notice

NOTICE! The digital input of the uEye LE USB 3.1 Gen 1 is not potential-free and has no protective circuits.

Digital input wiring

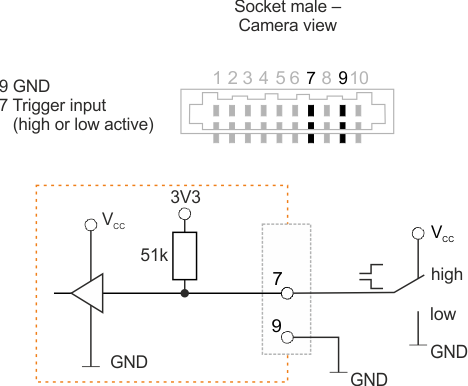

Fig. 345: Wiring of the digital input (trigger)

Fig. 345: Wiring of the digital input (trigger)
