Using the example of the UI-124xLE, the specifications for maximum temperatures, mounting, shield and ESD protection are provided. The listed data is applicable for all USB uEye LE board level versions.

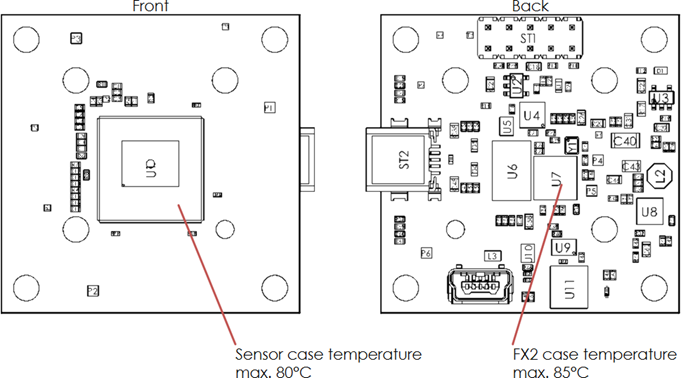

Temperature management
Fig. 471: Temperature information
Assembly information

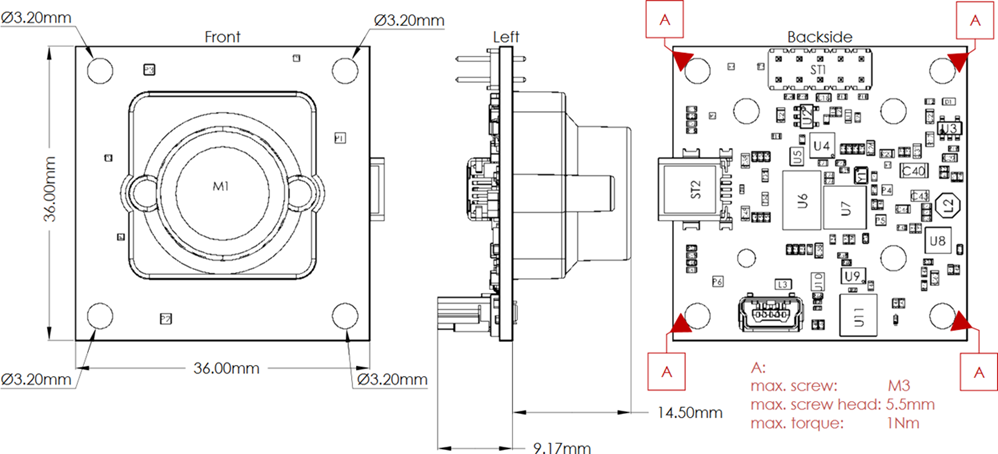

The USB uEye LE cameras can be screwed on both sides.
Fig. 472: Mounting details

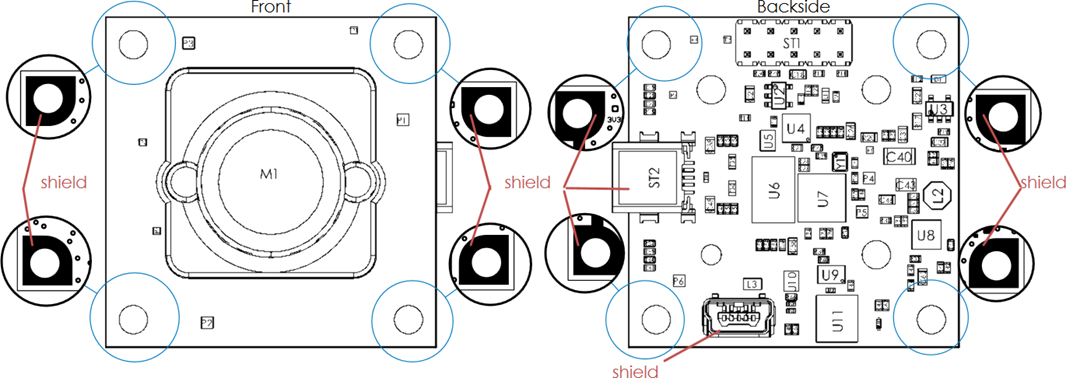

Assembly hole attachment
Fig. 473: Assembly hole attachment
ESD protection

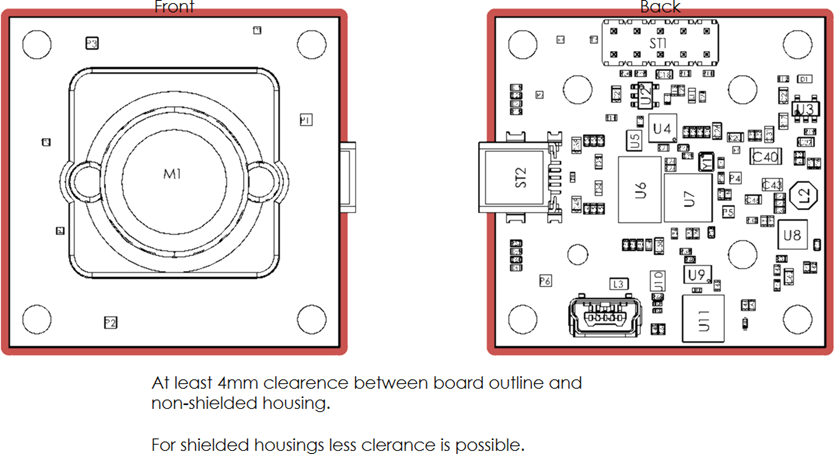

•For optimum ESD protection, keep a clearance on all sides of 4 mm from unshielded housings. A smaller clearance is possible with shielded housings.
•The PCB should be mounted with the fixing screws on a base connected to the shield. If this is not possible, an insulating connection must be ensured.
•The connection cable should have a shield with low-resistance on both sides.
Fig. 474: ESD protection
