Sensor specification



Sensor type

CMOS

Shutter

Global shutter

Characteristic

Linear with knee points

Readout mode

Progressive scan

Resolution class

WVGA

Resolution

0.36 MPix

Resolution (h x v)

752 x 480 pixels

Aspect ratio

5:4

ADC (analog-to-digital converter)

10 bits

Optical sensor class

1/3"

Optical area

4.512 mm x 2.880 mm

Optical sensor diagonal

5.35 mm (1/2.99")

Pixel size

6.00 µm, square

Micro lens shift

Manufacturer

onsemi

Sensor name, monochrome

MT9V032C12STM

Sensor name, color

MT9V032C12STC

Special features

HDR mode with kneepoints for extended dynamic range (see Kneepoint HDR sensors chapter)

Sensor internal controls for exposure (AES) and gain (AGC), can be used optionally

Gain



Monochrome model (master gain)

4.0x

Color model (master/RGB)

4.0x/5.0x (software)

Analog gain boost

1.6x

Supported image profiles

Format ID

Resolution

Name

13

640 x 480

VGA

14

640 x 360

VGA 16:9

16

352 x 288

CIF

17

288 x 352

CIF Portrait

19

240 x 320

QVGA Portrait

Quantum efficiency

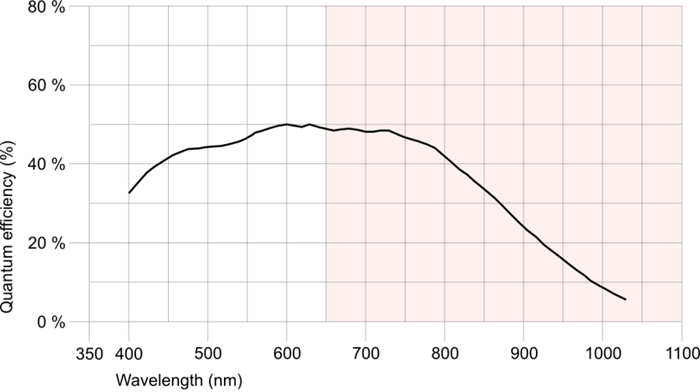

Fig. 206: UI-122x/UI-322x/UI-522x (monochrome)

Fig. 206: UI-122x/UI-322x/UI-522x (monochrome)

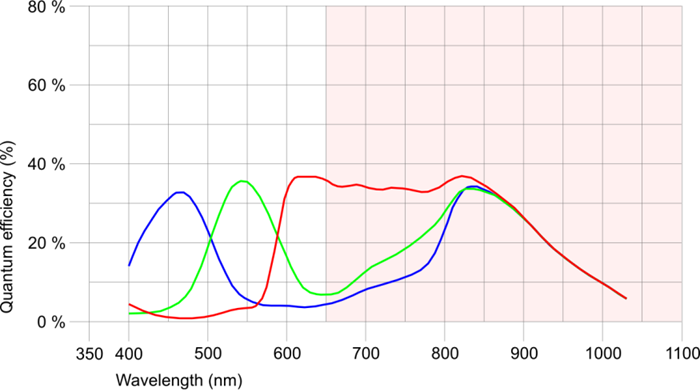

Fig. 207: UI-122x/UI-322x/UI-522x (color)

Fig. 207: UI-122x/UI-322x/UI-522x (color)

The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
