Sensor specification



Sensor type

CMOS

Shutter

Rolling shutter / global start shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

QSXGA

Resolution

4.92 MPix

Resolution (h x v)

2560 x 1920 pixels

Aspect ratio

4:3

ADC (analog-to-digital converter)

12 bits (older models until 2010 only 10 bits)

Optical sensor class

1/2"

Optical area

5.632 x 4.224 mm

Optical sensor diagonal

7.04 mm (1/2.27")

Pixel size

2.20 µm, square

Micro lens shift

Manufacturer

onsemi

Sensor name, monochrome

MT9P031STM

Sensor name, color

MT9P031STC

Special features

Trigger prescaler support (not all models)

Global start function

Gain



Monochrome model (master gain)

30.0x

Color model (master/RGB)

12.11x/6.65x

Analog gain boost

1.6x (color model only)

Supported image profiles

Format ID

Resolution

Name

5

2048 x 1536

3M

6

1920 x 1080

Full HD 16:9

7

1632 x 1224

2M

8

1280 x 960

1.2M 4:3

9

1280 x 720

HD 16:9

11

960 x 480

WVGA 2:1

12

800 x 480

WVGA

13

640 x 480

VGA

14

640 x 360

VGA 16:9

15

400 x 240

WQVGA

16

352 x 288

CIF

17

288 x 352

CIF Portrait

18

320 x 240

QVGA

19

240 x 320

QVGA Portrait

20

1600 x 1200

UXGA

23

2560 x 1920

5M

24

768 x 576

CCIR

25

1280 x 1024

1.3M SXGA

27

1024 x 768

XGA

28

1024 x 1024

1M

29

800 x 600

SVGA

30

1360 x 1024

1.4M 4:3

Quantum efficiency

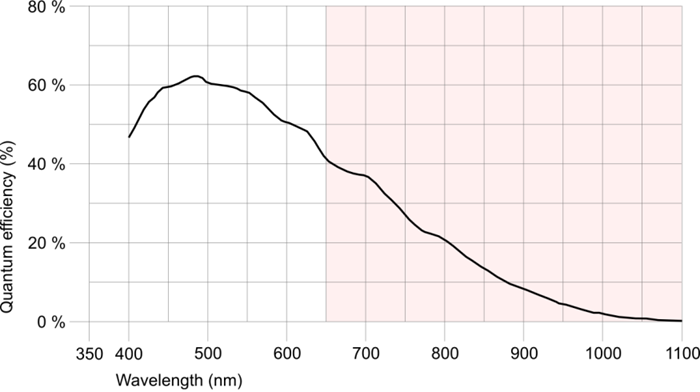

Fig. 218: UI-148x/UI-348x/UI-548x (monochrome)

Fig. 218: UI-148x/UI-348x/UI-548x (monochrome)

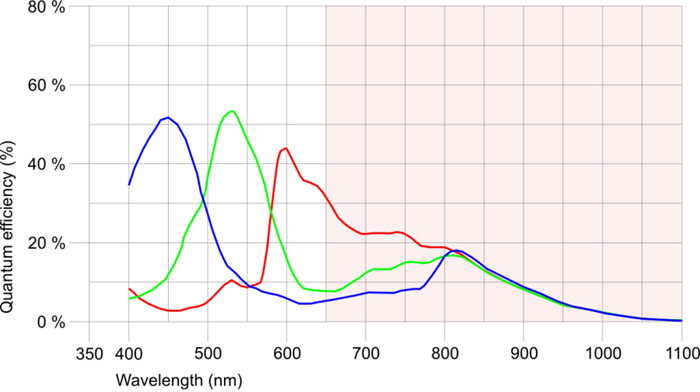

Fig. 219: UI-148x/UI-548x (color)

Fig. 219: UI-148x/UI-548x (color)

The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
