Sensor specification



Sensor type

CMOS

Shutter

Rolling shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

UHD+

Resolution

10.55 MPix

Resolution (h x v)

3840 x 2748 pixels

Aspect ratio

4:3

ADC (analog-to-digital converter)

12 bits

Optical sensor class

1/2"

Optical area

6.413 x 4.589 mm

Optical sensor diagonal

7.89 mm (1/2.03")

Pixel size

1.67 µm, square

Micro lens shift

Manufacturer

onsemi

Sensor name, monochrome

MT9J003STM

Sensor name, color

MT9J003STC

Special features

Sensor internal image scaler, downscaling by factor 1...8, see is_SetSensorScaler() and uEye Cockpit: Size

Gain



Monochrome model (master gain)

8.52x

Color model (master/RGB)

8.52x/5.29x

Analog gain boost

-

Supported image profiles

Format ID

Resolution

Name

1

3264 x 2448

8M

2

3264 x 2176

8M 3:2

3

3264 x 1836

8M 16:9

4

2592 x 1944

5M

5

2048 x 1536

3M

6

1920 x 1080

Full HD 16:9

7

1632 x 1224

2M

8

1280 x 960

1.2M 4:3

9

1280 x 720

HD 16:9

11

960 x 480

WVGA 2:1

12

800 x 480

WVGA

13

640 x 480

VGA

14

640 x 360

VGA 16:9

15

400 x 240

WQVGA

16

352 x 288

CIF

17

288 x 352

CIF Portrait

18

320 x 240

QVGA

19

240 x 320

QVGA Portrait

20

1600 x 1200

UXGA

21

3840 x 2748

10M

22

1920 x 1080

Full HD 16:9, HQ

24

768 x 576

CCIR

25

1280 x 1024

1.3M SXGA

26

2448 x 2048

5M

27

1024 x 768

XGA

28

1024 x 1024

1M

29

800 x 600

SVGA

30

1360 x 1024

1.4M 4:3

Quantum efficiency

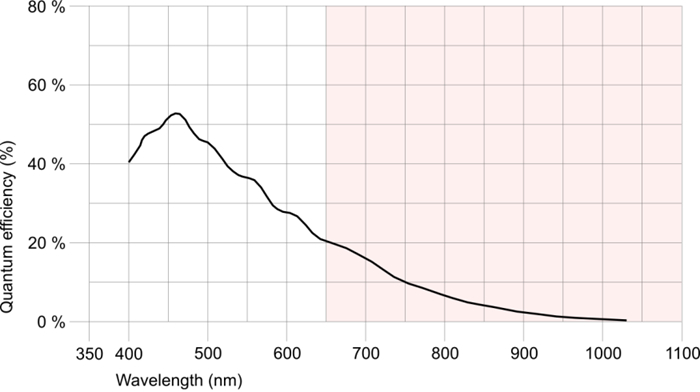

Fig. 222: UI-149x/UI-549x (monochome)

Fig. 222: UI-149x/UI-549x (monochome)

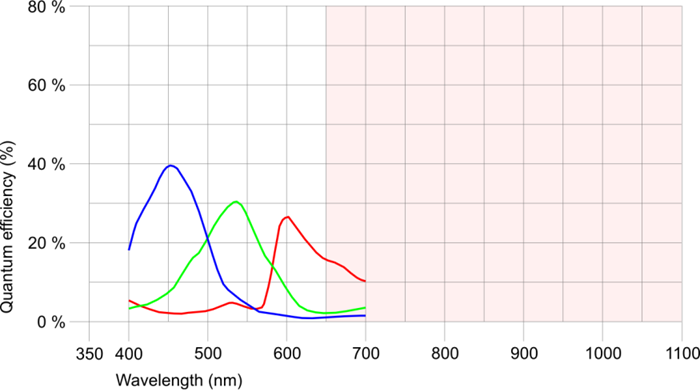

Fig. 223: UI-149x/UI-549x (color)

Fig. 223: UI-149x/UI-549x (color)

The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
