Sensor specification



Sensor type

CCD

Shutter

Global shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

SGVA-

Resolution

1.23 MPix

Resolution (h x v)

1280 x 960 pixels

Aspect ratio

4:3

ADC (analog-to-digital converter)

14 bit A/D converter, 12 bit transfer

Optical sensor class

1/3"

Optical area

4.800 x 3.600 mm

Optical sensor diagonal

6.00 mm (1/2.67")

Pixel size

3.75 µm, square

Micro lens shift

Manufacturer

Sony

Sensor name, monochrome

ICX445ALA

Sensor name, color

ICX445AQA

Special features

Supports overlap trigger mode for high frame rates in trigger mode

Supports long -time exposure

Gain



Monochrome model (master gain)

12x

Color model (master/RGB)

12x/4x

Gain boost

-

Supported image profiles

Format ID

Resolution

Name

8

1280 x 960

1.2M 4:3

9

1280 x 720

HD 16:9

11

960 x 480

WVGA 2:1

12

800 x 480

WVGA

13

640 x 480

VGA

14

640 x 360

VGA 16:9

15

400 x 240

WQVGA

16

352 x 288

CIF

17

288 x 352

CIF Portrait

18

320 x 240

QVGA

19

240 x 320

QVGA Portrait

24

768 x 576

CCIR

27

1024 x 768

XGA

29

800 x 600

SVGA

Relative sensor sensitivity

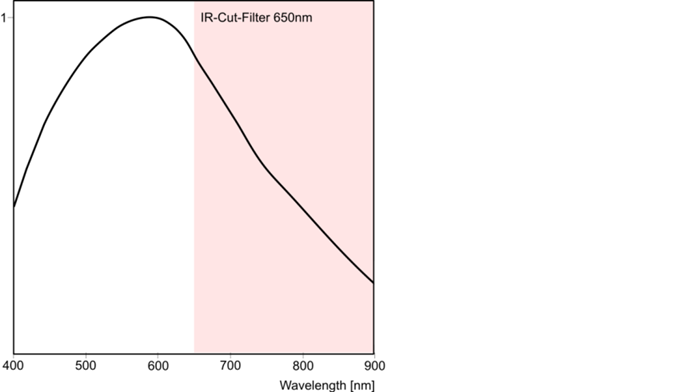

Fig. 293: Sensor sensitivity of the UI-214x/UI-614x (monochrome)

Fig. 293: Sensor sensitivity of the UI-214x/UI-614x (monochrome)

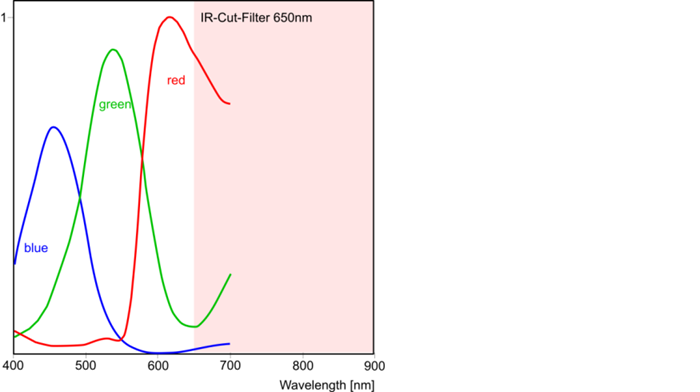

Fig. 294: Sensor sensitivity of the UI-214x/UI-614x (color)

Fig. 294: Sensor sensitivity of the UI-214x/UI-614x (color)

The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
