Sensor specification |
|
Sensor type |
CCD |
Shutter |
Global shutter |
Characteristic |
Linear |
Readout mode |
Progressive scan |
Resolution class |
VGA |
Resolution |
0.31 MPix |
Resolution (h x v) |
640 x 480 pixels |
Aspect ratio |
4:3 |
12 bits |
|
Optical sensor class |
1/2" |
Optical area |
6.336 x 4.752 mm |
Optical sensor diagonal |
7.92 mm (1/2.02") |
Pixel size |
9.90 µm, square |
0° |
|
Manufacturer |
Sony |
Sensor name, monochrome |
ICX414AL |
Sensor name, color |
ICX414AQ |
Special features |
•Supports long time exposure •Supports overlap trigger mode for high frame rates in trigger mode |
Gain |
|
Monochrome model (master gain) |
12x |
Color model (master/RGB) |
12.0x/5.0x |
Supported image profiles
Format ID |
Resolution |
Name |
|---|---|---|
13 |
640 x 480 |
VGA |
14 |
640 x 360 |
VGA 16:9 |
15 |
400 x 240 |
WQVGA |
16 |
352 x 288 |
CIF |
17 |
288 x 352 |
CIF Portrait |
18 |
320 x 240 |
QVGA |
19 |
240 x 320 |
QVGA Portrait |
Relative sensor sensitivity

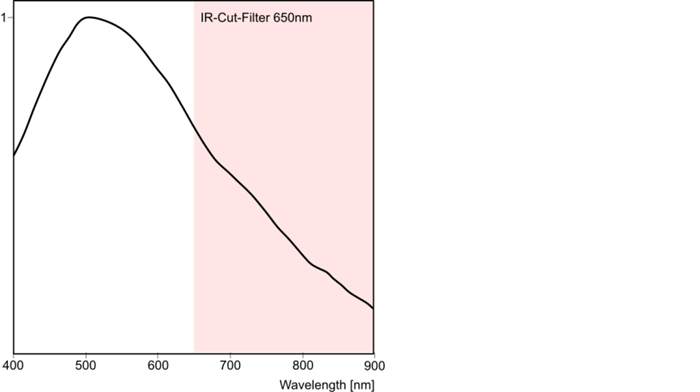

Fig. 296: Sensor sensitivity of the UI-221x/UI-621x (monochrome)
Fig. 297: Sensor sensitivity of the UI-221x/UI-621x (color)
The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
