Sensor specification |
|
Sensor type |
CCD |
Shutter |
Global shutter |
Characteristic |
Linear |
Readout mode |
Progressive scan |
Resolution class |
XGA |
Resolution |
0.79 MPix |
Resolution (h x v) |
1024 x 768 pixels |
Aspect ratio |
4:3 |
12 bits |
|
Optical sensor class |
1/3" |
Optical area |
4.762 x 3.571 mm |
Optical sensor diagonal |
5.95 mm (1/2.69") |
Pixel size |
4.65 µm, square |
0° |
|
Manufacturer |
Sony |
Sensor name, monochrome |
ICX204AL |
Sensor name, color |
ICX204AK |
Special features |
•Supports long time exposure •Supports overlap trigger mode for high frame rates in trigger mode |
Gain |
|
Monochrome model (master gain) |
12x |
Color model (master/RGB) |
12.0x/5.0x |
Supported image profiles
Format ID |
Resolution |
Name |
|---|---|---|
11 |
960 x 480 |
WVGA 2:1 |
12 |
800 x 480 |
WVGA |
13 |
640 x 480 |
VGA |
14 |
640 x 360 |
VGA 16:9 |
15 |
400 x 240 |
WQVGA |
16 |
352 x 288 |
CIF |
17 |
288 x 352 |
CIF Portrait |
18 |
320 x 240 |
QVGA |
19 |
240 x 320 |
QVGA Portrait |
24 |
768 x 576 |
CCIR |
27 |
1024 x 768 |
XGA |
29 |
800 x 600 |
SVGA |
Relative sensor sensitivity

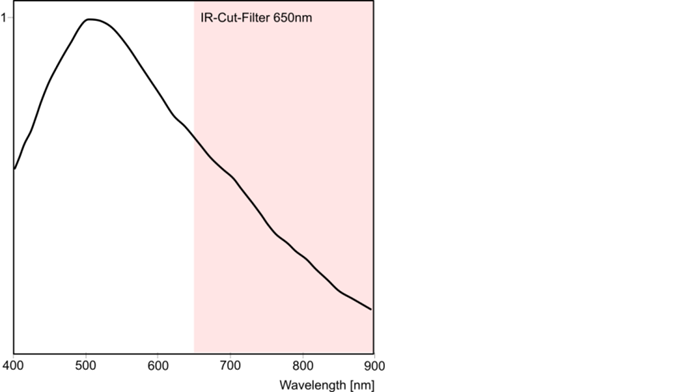

Fig. 308: Sensor sensitivity of the UI-223x/UI-623x (monochrome)

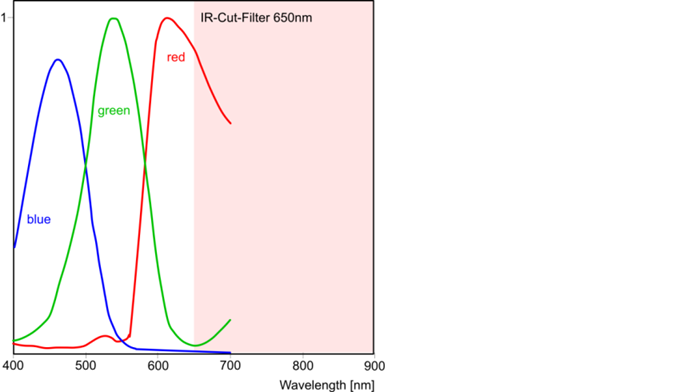

Fig. 309: Sensor sensitivity of the UI-223x/UI-623x (color)
The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
