Sensor specification



Sensor type

CCD

Shutter

Global shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

SXGA+

Resolution

1.39 MPix

Resolution (h x v)

1360 x 1024 pixels

Aspect ratio

4:3

ADC (analog-to-digital converter)

12 bits

Optical sensor class

1/2"

Optical area

6.324 x 4.762 mm

Optical sensor diagonal

7.92 mm (1/2.02")

Pixel size

4.65 µm, square

Micro lens shift

Manufacturer

Sony

Sensor name, monochrome

ICX267AL

Sensor name, color

ICX267AK

Special features

Supports overlap trigger mode for high frame rates in trigger mode

Gain



Monochrome model (master gain)

12x

Color model (master/RGB)

12x/4.0x

Analog gain boost

-

Supported image profiles

Format ID

Resolution

Name

8

1280 x 960

1.2M 4:3

9

1280 x 720

HD 16:9

11

960 x 480

WVGA 2:1

12

800 x 480

WVGA

13

640 x 480

VGA

24

768 x 576

CCIR

27

1024 x 768

XGA

28

1024 x 1024

1M

29

800 x 600

SVGA

30

1360 x 1024

1.4M 4:3

Relative sensor sensitivity

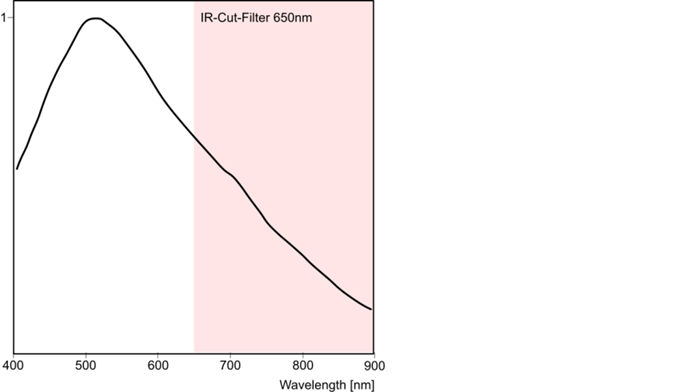

Fig. 326: Sensor sensitivity of the UI-234x/UI-634x (monochrome)

Fig. 326: Sensor sensitivity of the UI-234x/UI-634x (monochrome)

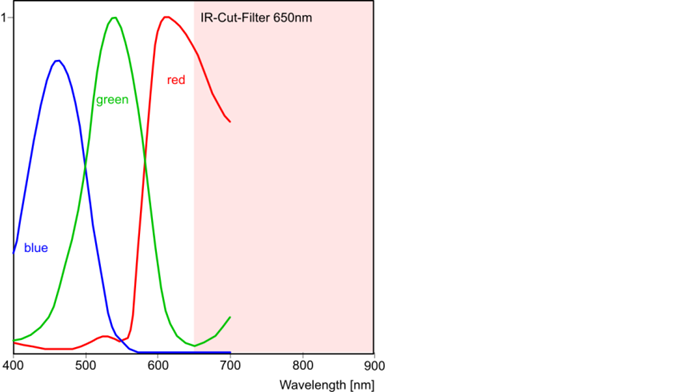

Fig. 327: Sensor sensitivity of the UI-234x/UI-634x (color)

Fig. 327: Sensor sensitivity of the UI-234x/UI-634x (color)

The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
