Sensor specification



Sensor type

CMOS

Shutter

Global shutter

Characteristic

Linear

Readout mode

Progressive scan

Resolution class

3 MP

Resolution

3.17 MPix

Resolution (h x v)

2056 x 1542 pixels

Aspect ratio

4:3

ADC (analog-to-digital converter)

12 bits

Optical sensor class

1/1.8"

Optical area

7.093 x 5.320 mm

Optical sensor diagonal

8.864 mm (1/1.81")

Pixel size

3.45 µm, square

Micro lens shift

Manufacturer

Sony

Sensor name, monochrome

IMX265LLR-C

Sensor name, color

IMX265LQR-C

Special features

UI-327xCP/UI-527x only: IDS line scan ("AOI merge mode")

Supports overlap trigger mode for high frame rates in trigger mode

Sensor source gain

Gain



Monochrome model (master gain)

24x

Color model (master gain/RGB)

24x/5x

Analog gain boost

24x

Supported image profiles

Format ID

Resolution

Name

5

2048 x 1536

3M

6

1920 x 1080

Full HD 16:9

7

1632 x 1224

2M

8

1280 x 960

1.2M 4:3

9

1280 x 720

HD 16:9

11

960 x 480

WVGA 2:1

12

800 x 480

WVGA

13

640 x 480

VGA

18

320 x 240

QVGA

20

1600 x 1200

UXGA

24

768 x 576

CCIR

25

1280 x 1024

1.3M SXGA

28

1024 x 1024

1M

29

800 x 600

SVGA

30

1360 x 1024

1.4M 4:3

35

1920 x 1200

WUXGA

Quantum efficiency

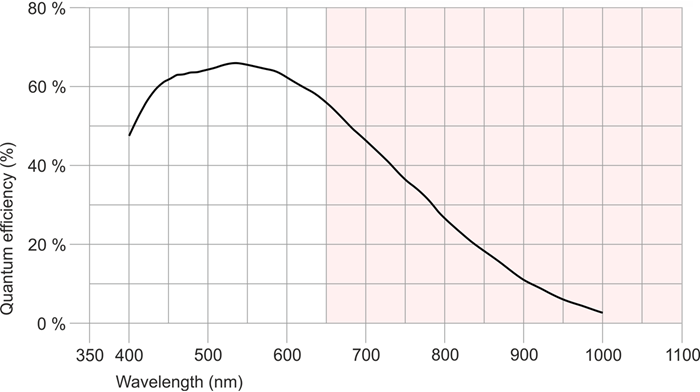

Fig. 270: UI-327x/UI-527x (monochrome)

Fig. 270: UI-327x/UI-527x (monochrome)

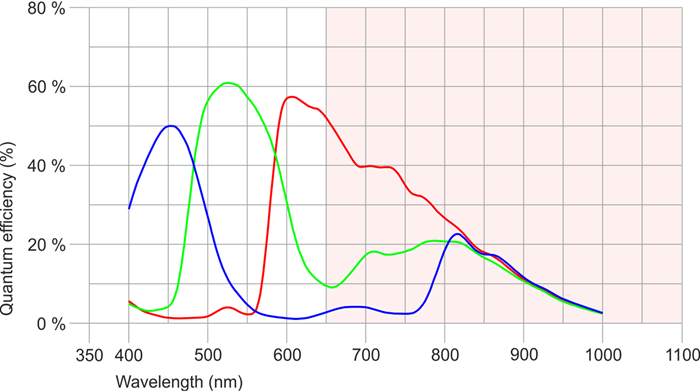

Fig. 271: UI-327x/UI-527x (color)

Fig. 271: UI-327x/UI-527x (color)

The cut-off wavelength of the IR cut filter is at 650 nm (if the IR cut filter is used in the camera model).
